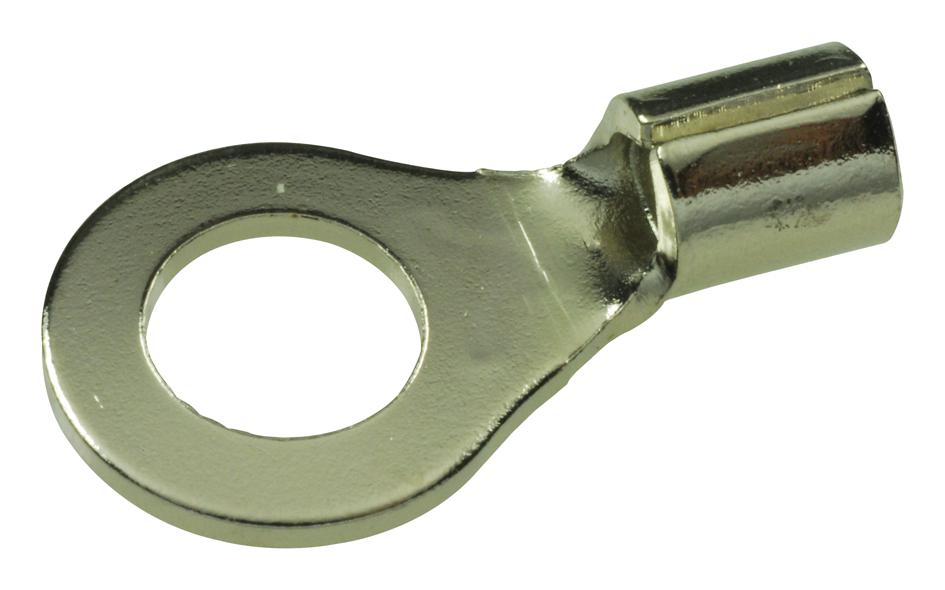

MOLEX 190440032 Krimptite Ring Tongue Terminal
The MOLEX 19044-0032 Krimptite Ring Tongue Terminal is a solderless termination solution for heavy-duty applications. Designed for 14-16 AWG wire, this terminal provides a secure and reliable connection to a stud size of 10 (M5). Constructed with tin-plated copper, it offers excellent conductivity and corrosion resistance. It is commonly used in automotive, industrial equipment, and power distribution systems where robust and dependable wire terminations are required. The terminal is compatible with various crimping tools, ensuring consistent and high-quality connections.
MOLEX 190440032 Krimptite Ring Tongue Terminal Specifications:
- overview: Solderless Terminals
- product_family: Ring and Spade Terminals
- series: 19044
- comments: Heavy Duty, Heavy Duty Crimp Quality Equipment
- mil_spec: N/A
- upc: 800755059823
- barrel_type: Closed
- insulation: None
- material_metal: Copper
- material_plating: Mating Tin
- net_weight_g: 0.762
- packaging_type: Carton
- plating_min_mating_uin: 100
- plating_min_mating_umin: 2.5
- plating_min_termination_uin: 100
- plating_min_termination_umin: 2.5
- stud_size: 10 (M5)
- temperature_range_operating_c: 149
- termination_interface_style: Crimp or Compression
- wire_size_awg: 14, 16
- wire_size_mm2: 1.00-2.50
- lead_free_process_capability: N/A
- engineering_number: B-137-10
- elv: Not Relevant
- china_roh: Compliant
- reach_svhc: Not Contained Per -ED/88/2018 (15 January 2019)
- halogen_free_status: Low-Halogen
