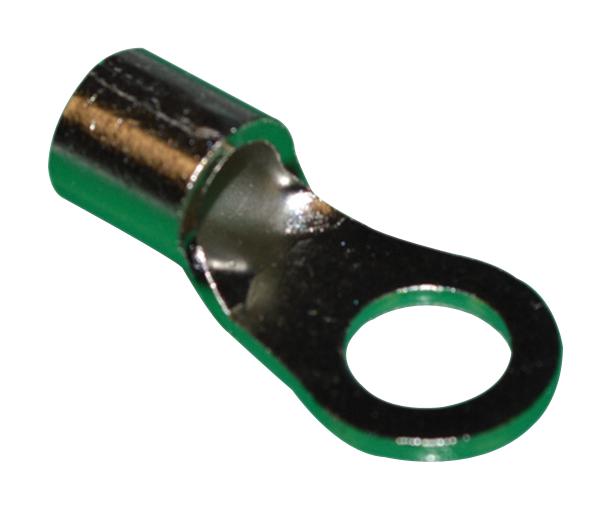

MOLEX 190440140 Krimptite Ring Tongue Terminal
The MOLEX 19044-0140 Krimptite Ring Tongue Terminal is a solderless terminal designed for secure and reliable connections in various industrial applications. This terminal is specifically engineered for 14-16 AWG heavy-duty wire, offering a robust solution for power transmission and signal integrity. It features a closed barrel design for enhanced insulation and a tin plating for corrosion resistance. The terminal is CSA and UL certified, ensuring compliance with industry standards. It is commonly used in automotive, appliance, and industrial equipment where a secure and durable connection is required.
MOLEX 190440140 Krimptite Ring Tongue Terminal Specifications:
- Part Number: 0190440140
- Status: Active
- Overview: Solderless Terminals
- Description: Krimptite Ring Tongue Terminal for 14-16 Heavy Duty AWG Wire
- Product Family: Ring and Spade Terminals
- Series: 19044
- Comments: Heavy Duty
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: Krimptite
- Type: Ring
- UPC: 800755060164
- Barrel Type: Closed
- Insulation: None
- Material - Plating Mating: Tin
- Net Weight: 3.919/g
- Packaging Type: Bag
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Stud Size: 3/8" (M9)
- Termination Interface Style: Crimp or Compression
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.30-2.00
- Engineering Number: B-101-38HD
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Application Tooling PremiumGrade Hand Crimp Tool: 640030100
- Application Tooling Crimp Head for AT-200 Pneumatic Hand Tool: 640070100
