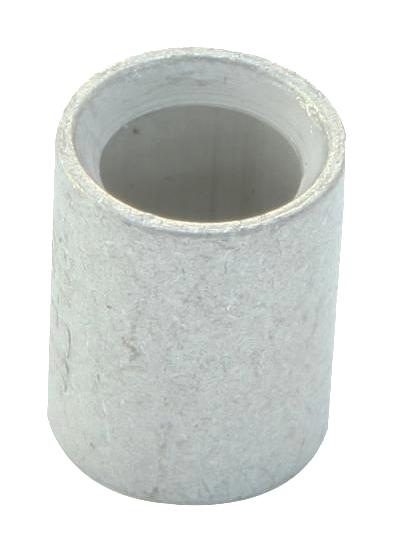

MOLEX 192050006 Parallel VersaKrimp Splice
The MOLEX 19205-0006 Parallel VersaKrimp splice is a robust solution for joining two lengths of 6 AWG wire. Constructed with a closed, brazed barrel made of copper and finished with a tin plating for both mating and termination surfaces, this splice ensures a reliable and corrosion-resistant connection. It is designed for use in a variety of applications where secure wire joining is required, and its VersaKrimp design simplifies the crimping process. The splice is CSA and UL certified, and it meets RoHS compliance standards, making it suitable for environmentally conscious applications. Application tooling is available to ensure proper and consistent crimping.
MOLEX 192050006 Parallel VersaKrimp Splice Specifications:
- Product Family: Splices
- Series: 19205
- Product Name: Parallel, VersaKrimp
- Wire Size AWG: 6
- Material - Metal: Copper
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Barrel Type: Closed - Brazed
- Net Weight: 3.338/g
- Insulation: None
- Crimp Quality Equipment: Yes
- UPC: 800755060850
- Engineering Number: E-361
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
- Application Tooling - Manual Putt Pump: 192860117
- Application Tooling - Hydraulic System, Die set required: 192900004
- Application Tooling - Manual tool for Crimping non-insulated 8AWG thru 4/0 Terminals: 192940008
- Application Tooling - Hydraulic Dieless Crimping Tool: 638161700
- Application Tooling - PremiumGrade Hand Crimp Tool for 2-8 AWG Terminals: 640013900
- Application Tooling - Square “DIN” style dies for 6 AWG: 640037770
- Application Tooling - Crimp Head for the AT-200 Pneumatic Hand Tool: 640074300
