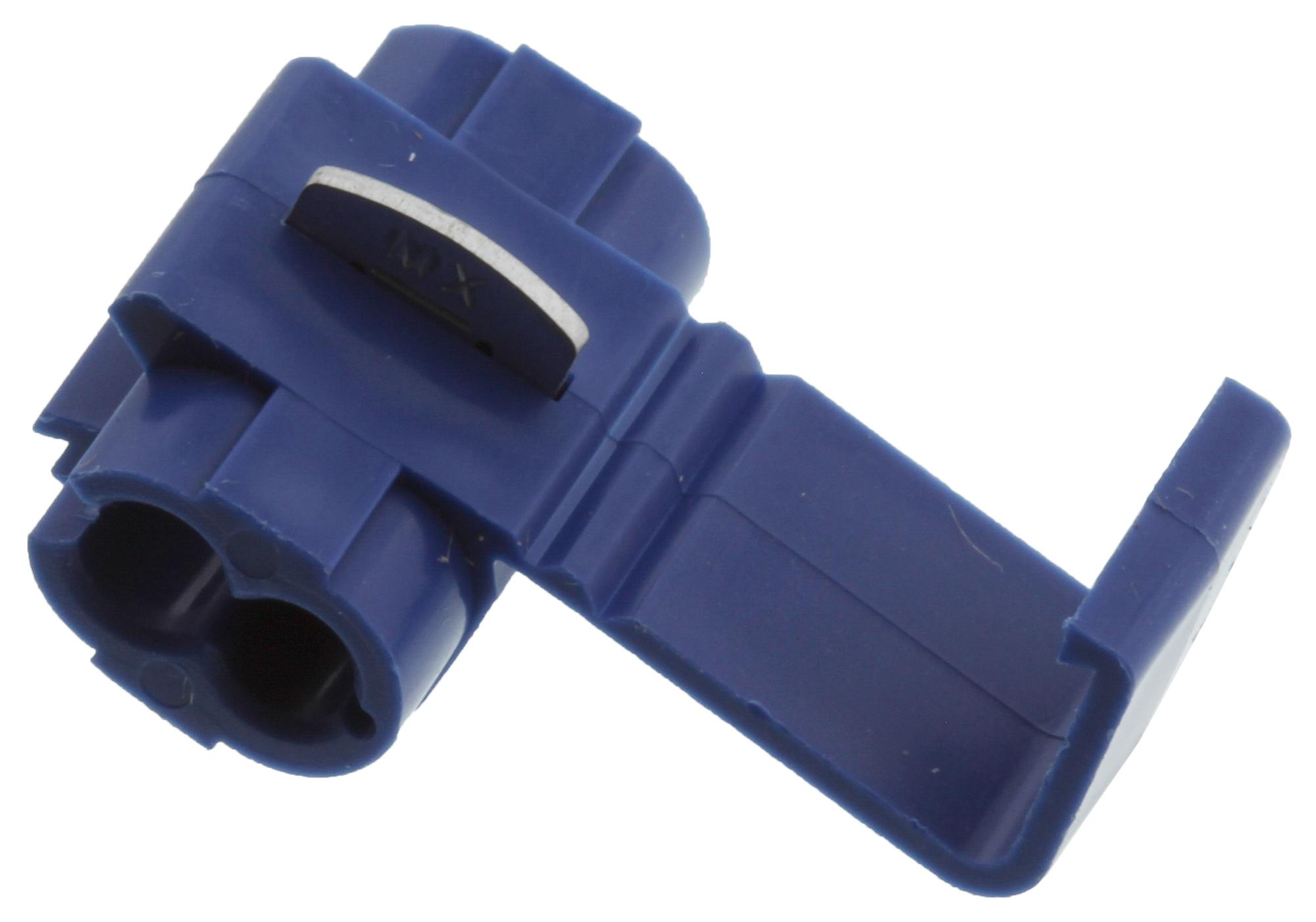

MOLEX 192160003 Multi-Lock Connector
The MOLEX 19216-0003 Multi-Lock Connector is a robust splicing solution designed for 14-16 AWG wire applications. Constructed with a copper metal body and tin plating for both mating and termination, this connector ensures reliable electrical connections. Its closed barrel design and blue polypropylene resin color provide durability and ease of identification. Compliant with RoHS standards and featuring a halogen-free status, the 19216-0003 is suitable for a wide range of industrial and automotive applications where secure and dependable wire splicing is required. The connector's operating temperature range of up to 105°C ensures performance in demanding environments.
MOLEX 192160003 Multi-Lock Connector Specifications:
- Status: Active
- Overview: Splices
- Description: Multi-Lock Connector for 14-16 AWG Wire
- Agency Certification: UL E32244
- Product Family: Splices
- Series: 19216
- Comments: 13.97 x 9.53mm when closed
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: Multi-Lock
- UPC: 800753056138
- Barrel Type: Closed
- Color - Resin: Blue
- Flammability: 94V-0
- Insulation: Polypropylene
- Material - Metal: Copper
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 1.267/g
- Packaging Type: Bag
- Temperature Range - Operating: 105°C
- Wire Insulation Diameter: 3.30mm & 4.32mm
- Wire Size AWG: 14, 16
- Wire Size mm²: N/A
- Voltage - Maximum: 600V
- Lead-freeProcess Capability: N/A
- Engineering Number: ML-1614
- Product Specification: PS-19902-011-001, PS-19902-013-001
- Sales Drawing: SD-19216-003
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
