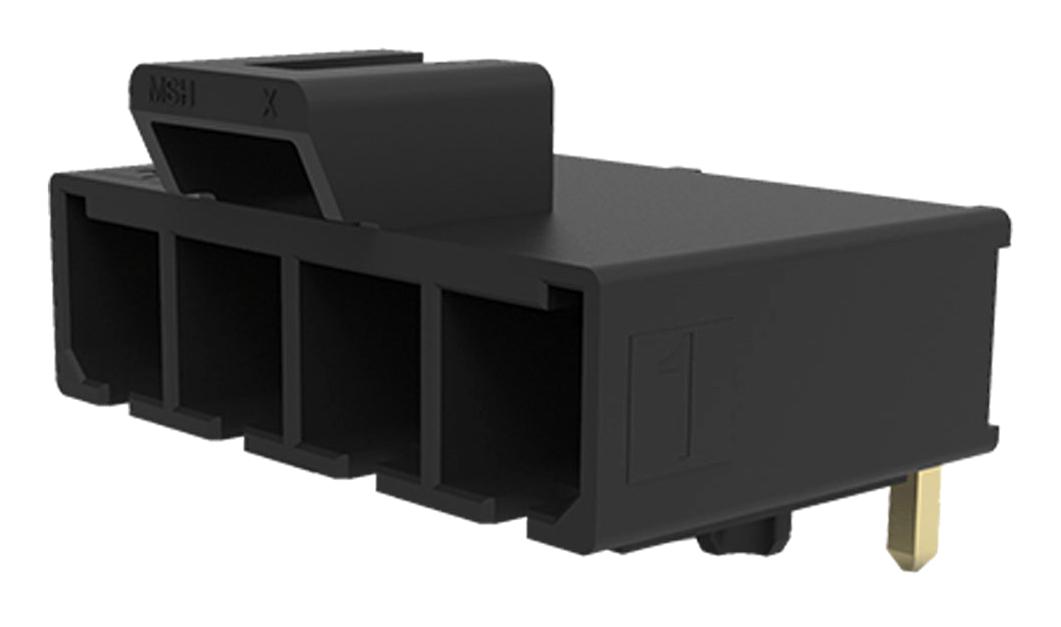

MOLEX 2002411224 Power Connector
The MOLEX Mega-Fit Power Connector is designed for high-current applications, delivering up to 25.0A per circuit. Its features include tin-plated contacts for enhanced design flexibility, a power-dense design for efficient use of space, and sacrificial contacts enabling hot plugging. The connector's unique keying options ensure proper mating, while its robust construction provides reliable performance in various industrial and commercial environments. It is suitable for applications such as home appliances, telecommunication equipment, and commercial vehicle electronics.
MOLEX 2002411224 Power Connector Specifications:
- Pitch: 5.70mm
- Current (max): 25.0A
- Voltage (max): 600V
- Contact Resistance: 6 milliohms
- Dielectric Withstanding Voltage: No Breakdown
- Insulation Resistance (min): 1,000 Megohms
- Contact Insertion Force (max): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max): 85N
- Mating Force (Tin plated): 6.8N
- Mating Force (Gold plated): 6.0N
- Unmating Force (Tin plated): 6.5N
- Unmating Force (Gold plated): 5.6N
- Durability (min): 2 Megohms
- Housing Material: UL 94 V-0
- Contact Plating (Contact Area): Gold (Au) 0.38 or 0.76µ (15 or 30µ")
- Contact Plating (Solder Tail Area): Tin (Sn)
- Underplating: Nickel (Ni)
- Operating Temperature: -40 to +150°C
- Packaging: Bag, Reel, Tray
- UL File No.: E29179
- CSA File No.: LR-19980_A_000
- Mates With: Mega-Fit Receptacles, Plugs
- Terminal Used: Series 172063, 076823, 105418, 105417
- Halogen Free: Yes or No
- Glow Wire Capable: Yes
