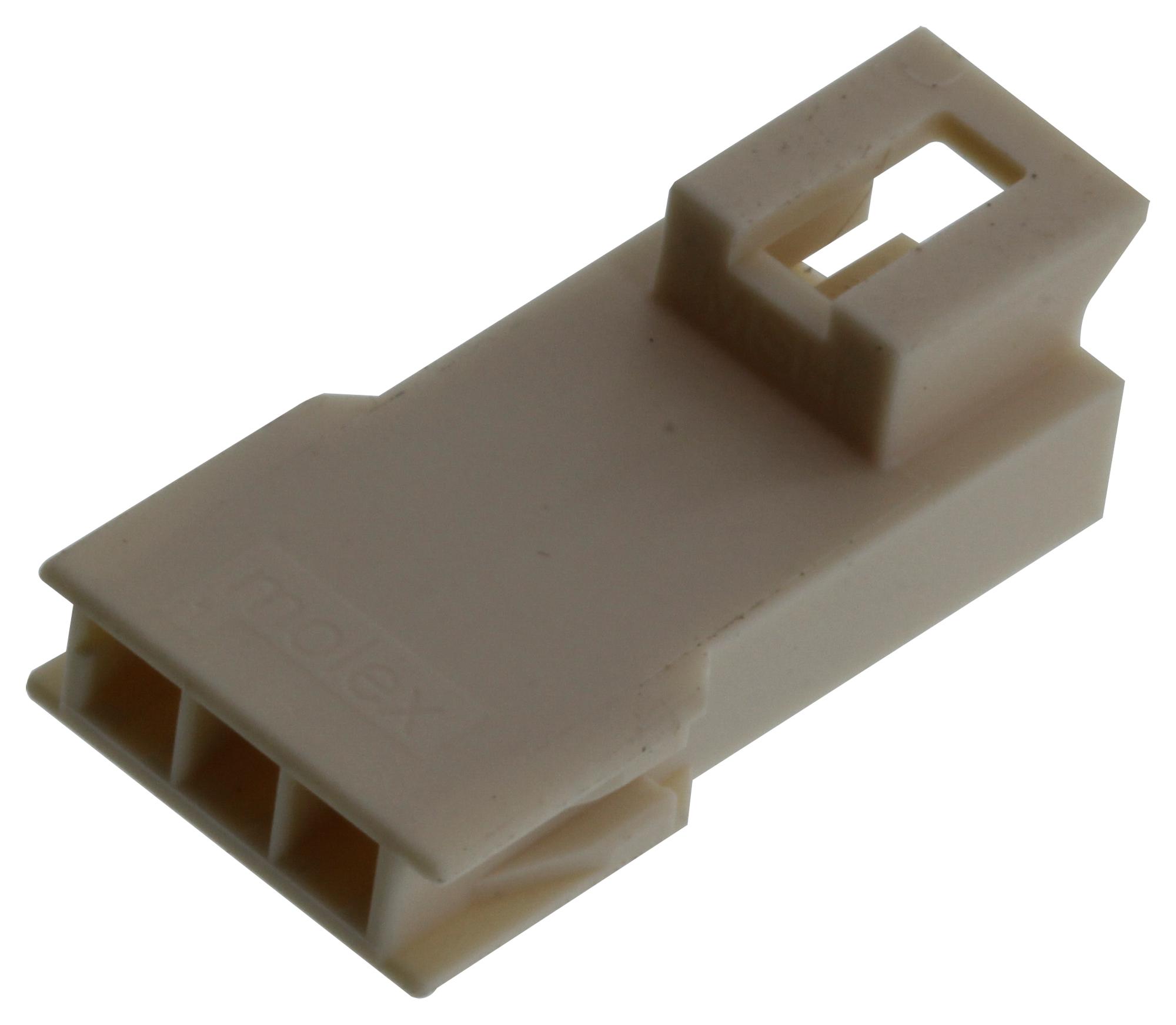

MOLEX 2002772103 Nano-Fit Power Connectors
Nano-Fit Power Connectors are compact, fully isolated, and feature keying options for reliable mating in high-density applications. Designed for 2.50mm pitch, these connectors offer ultra-low mate forces, positive-lock housings, and color-coded options to prevent cross-mating. Suitable for consumer, industrial, aerospace, and medical uses, they support multiple mounting styles, provide stable four-point contact and redundant paths for enhanced performance, and enable quick pick-and-place assembly. Their space-saving design improves PCB real estate and signal integrity, making them ideal for modern electronic systems requiring durability and efficiency.
MOLEX 2002772103 Nano-Fit Power Connectors Specifications:
- Voltage: 250V
- Current: 6.54A
- Contact Resistance: 10 milliohms
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles (tin), 50 cycles (gold)
- Housing Material: Receptacle - Nylon UL 94V-0, Header - LCP UL 94V-0
- Contact Material: High-Conductivity Copper
- Plating: Tin or 381) (15") Gold or 762))) (30") Gold, Solder Tail Plating - Tin
- PCB Thickness: 1.60mm and 2.40mm
- Operating Temperature: -40°C to +105°C (Tin), -40°C to +115°C (Gold)
Buy the Molex 200277 – Reliable Nano-Fit Power Connectors for Industrial Applications
Secure your electronics with Nano-Fit Power Connectors featuring 2.50mm pitch, keying options, and space-saving design. Perfect for high-density industrial, consumer, and aerospace applications, these connectors ensure reliable, durable connections. They support stable four-point contact, feature color coding to prevent cross-mating, and provide quick assembly with pick-and-place compatibility. Ideal for modern PCB designs, they enhance signal integrity and reduce space on your board while offering excellent performance over numerous mating cycles. Purchase now for quality and efficiency.
Buy Molex 200277 Nano-Fit Power Connectors now and experience unmatched reliability and performance in your high-density electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 2002772103?
You can click on the BUY or RFQ button to purchase 2002772103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2002772103?
You can download the 2002772103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2002772103?
MOLEX
