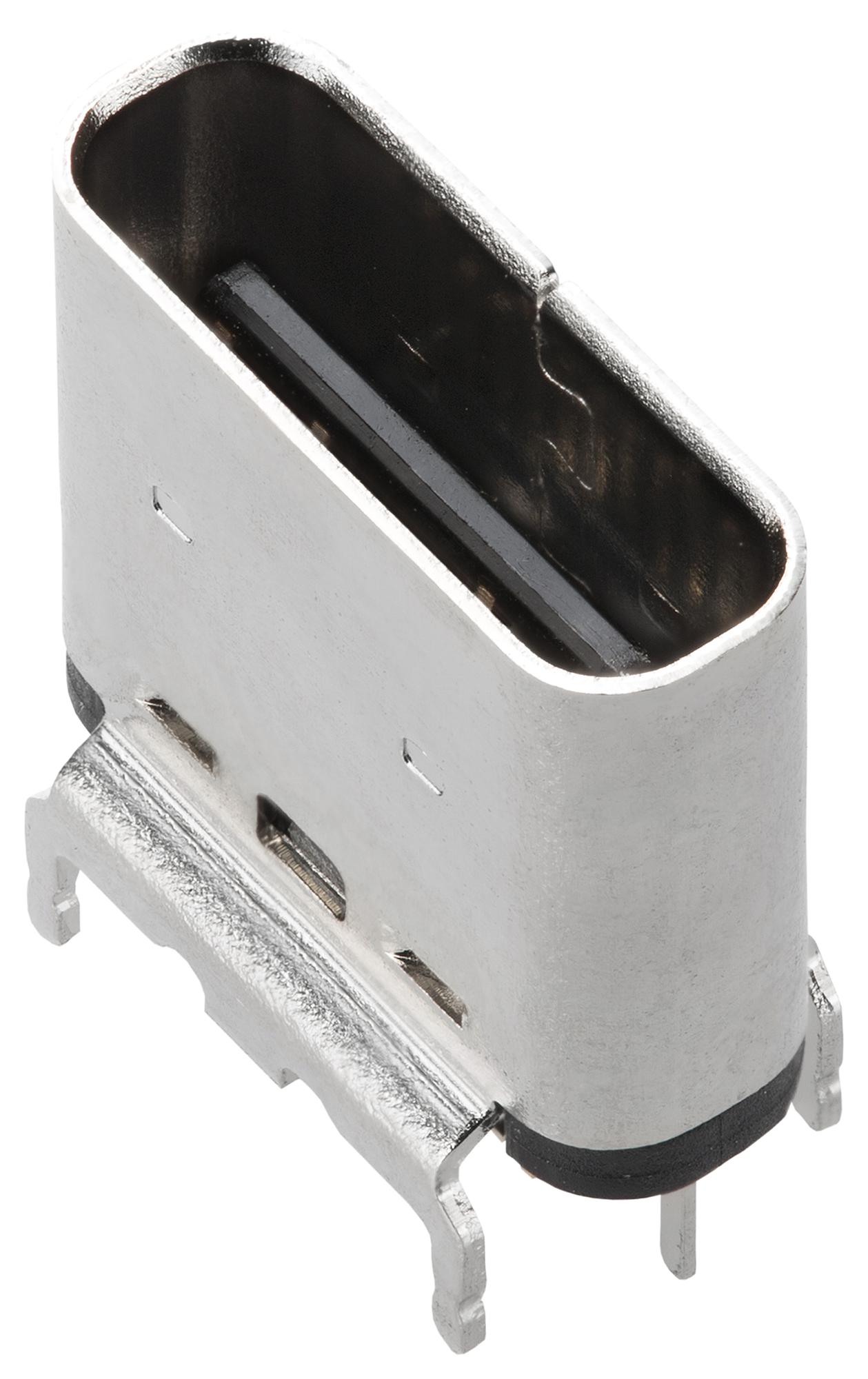

MOLEX 2047110001 USB Type C Receptacle
This USB Type C shielded I/O receptacle features a vertical surface-mount design with 0.76um gold plating and a 1.40mm solder tab. It supports USB 3.1 applications, with high durability of up to 10,000 mating cycles and a maximum operating voltage of 30V AC/DC. Constructed from high-temperature thermoplastic with copper alloy contacts, it offers reliable electrical performance and corrosion resistance. The receptacle is RoHS compliant, halogen-free, and suitable for surface mount technology, ensuring secure connection, excellent signal integrity, and easy installation in modern electronic devices.
MOLEX 2047110001 USB Type C Receptacle Specifications:
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: High Temperature Thermoplastic
- Durability: 10,000 mating cycles
- Voltage - Maximum: 30V AC/DC
- Current - Maximum per Contact: 0.25A, 1.25A, 5.0A (see product details)
- Temperature Range - Operating: -30°C to +85°C
- Dimensions: Pitch - Mating Interface 0.70mm, Solder Tab 1.40mm
- Surface Mount Compatibility: Yes
- Color - Resin: Black
- Net Weight: 0.686 grams
Buy the Buy Molex USB Type C Part Number 2047110001 Online
Order the Molex USB Type C Receptacle online today to ensure a high-quality, durable connection solution for your electronic devices. Designed with a vertical surface-mount form factor, 0.76um gold plating, and a 1.40mm solder tab, it supports USB 3.1 features with a maximum voltage of 30V AC/DC, ensuring fast data transfer and reliable power delivery. Constructed from high-temperature thermoplastic with copper alloy contacts, this rohs-compliant connector offers excellent corrosion resistance, durability of 10,000 mating cycles, and straightforward surface-mount installation. Perfect for modern, high-performance electronic designs requiring robust and secure USB Type C connections.
Get Molex 2047110001 today—built for quality, high durability, and reliable USB 3.1 connection in modern electronics.
Frequently Asked Questions
Where can I buy MOLEX 2047110001?
You can click on the BUY or RFQ button to purchase 2047110001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2047110001?
You can download the 2047110001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2047110001?
MOLEX
