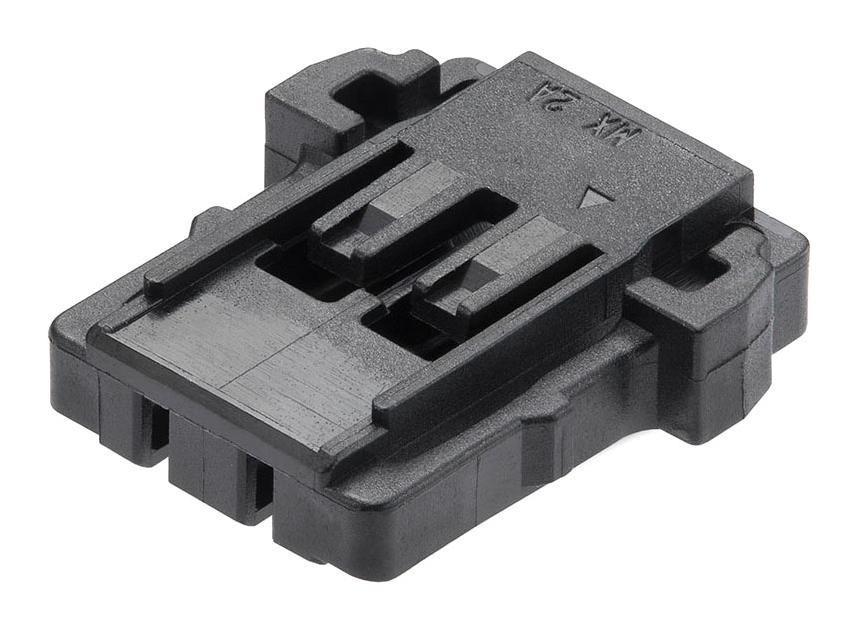

MOLEX 2053410203 Pico-Lock Receptacle Housing
The MOLEX 205341-0203 is a Pico-Lock receptacle crimp housing within the 205341 series. This connector is designed for wire-to-board applications, offering a 2.00mm pitch and a positive lock mechanism for secure connections. Constructed from Polyamide resin, it features a black color and is intended for single-row configurations with a maximum of 3 circuits. It is polarized to the mating part and operates within a temperature range of -40°C to +105°C, making it suitable for various industrial and commercial applications. It is RoHS compliant and utilizes a low-halogen construction.
MOLEX 2053410203 Pico-Lock Receptacle Housing Specifications:
- circuits_maximum: 3
- color_resin: Black
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Polyamide
- net_weight: 122.660/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: Yes
- temperature_range_operating: -40°C to +105°C
- upc: 191130509980
