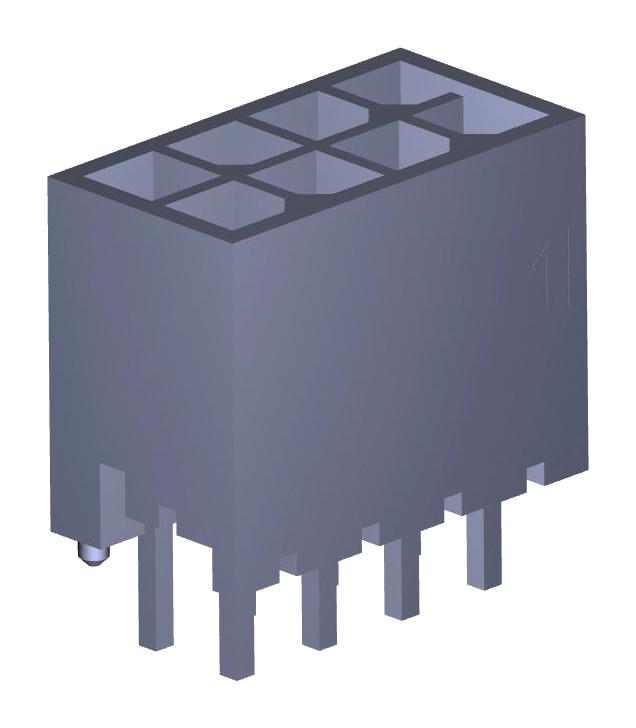

MOLEX 2068320801 Micro-Fit Connector
The Micro-Fit connector system features a vertical header with a 3.00mm pitch, dual row, 8 circuits, with tin over nickel plating. Designed for applications requiring reliable wire-to-board connections, it is UL 94V-0 and glow-wire capable, ensuring safety and durability. Crafted from high copper alloy, with a liquid crystal polymer housing, it offers up to 25 mating cycles and operates within a temperature range of -40°C to +105°C. Suitable for power and signal applications, its compact design supports efficient and secure electrical connections in various electronic assemblies.
MOLEX 2068320801 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Circuits: 8
- Color - Resin: Black
- Material - Metal: High Copper Alloy
- Material - Plating Mating: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 1.026g
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 3.18mm
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Through Hole
- Current - Maximum per Contact: 12.5A
- Voltage - Maximum: 600V AC/DC
- Durability (mating cycles max): 25
- Glow-Wire Capable: Yes
- Shrouded: Yes
- Polarized to Mating Part: Yes
- Lock to Mating Part: Yes
Buy the Buy Molex Micro-Fit Connector System Part Number 2068320801 Online
Purchase the Molex Micro-Fit connector system part 2068320801 online today for dependable and efficient power and signal connections. This high-quality vertical header features a 3.00mm pitch, dual row, 8 circuits, and tin over nickel plating. Designed for durability, it supports up to 25 mating cycles, operates at -40°C to +105°C, and is UL 94V-0 glow-wire capable. Ideal for various electronic and power applications, it ensures secure, space-efficient connections in demanding environments, enhancing project reliability and performance.
Order your Molex Series Micro-Fit connector part 2068320801 today and ensure reliable, high-quality power and signal connections for your electronic projects.
