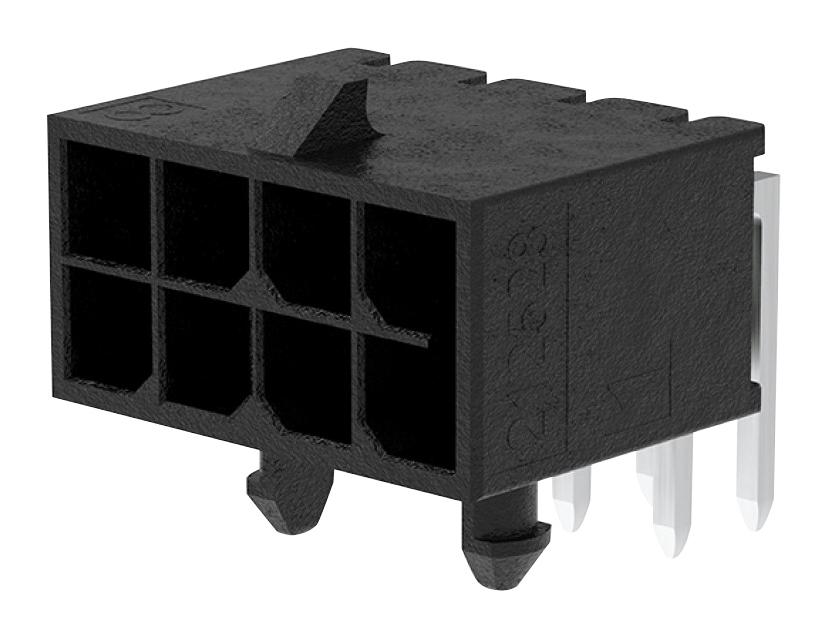

MOLEX 2125280800 Micro-Fit+ Connector
The MOLEX 212528-0800 is a Micro-Fit+ right-angle header, part of the Micro-Fit+ Connector System. This connector is designed for wire-to-board applications, offering a robust and reliable connection. It features 8 circuits arranged in a dual-row configuration with a 3.00mm pitch. Constructed with a high copper alloy and a matte tin plating, it provides excellent conductivity and corrosion resistance. The connector is compatible with Micro-Fit+ receptacles and is suitable for a wide range of industrial and consumer electronics applications.
MOLEX 2125280800 Micro-Fit+ Connector Specifications:
- product_family: Micro-Fit+ Connector System
- application: Power, Wire-to-Board
- circuits: 8
- maximum_circuits: 8
- color: Black
- mating_cycles_max: 25
- glow_wire_capable: Yes
- keying: Yes
- lock_to_mating_part: Yes
- material_metal: High Copper Alloy
- material_plating: Matte Tin
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.230
- orientation: Right Angle
- pcb_tail_length_mm: 3.18
- pcb_thickness_recommended_mm: 1.57
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- pitch_termination_interface_mm: 3.00
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- smc_compatible: No
- operating_temperature_range_c: -40° to +105°
- termination_interface_style: Through Hole
- maximum_current_per_contact_a: 12.5
- maximum_voltage_ac_rms_dc_v: 600
- upc: 193264254996
