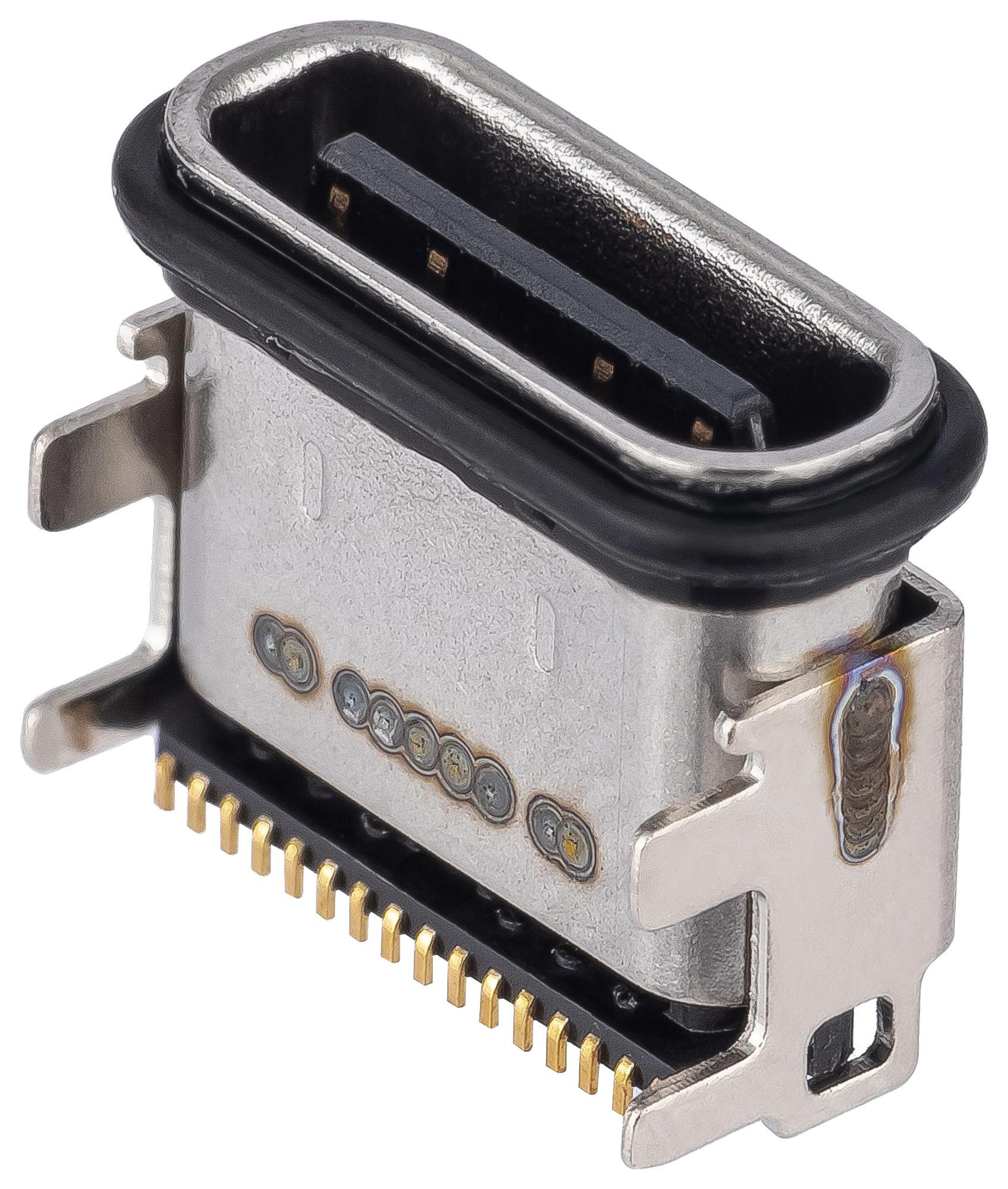

MOLEX 2130830005 USB Type-C Connector
The 213083 series Type-C USB shielded I/O receptacle features a compact waterproof design with an IPX8 rating and a right-angle, top-mount configuration. Made from durable copper alloy and nylon resin, it has gold-plated contacts on a 0.50mm pitch, supporting high-reliability connections with up to 10,000 mating cycles. Operating from -40°C to +85°C, it handles up to 5A per contact and 30V AC/DC, compatible with USB Type-C plugs for industrial and high-performance applications. Ideal for robust, waterproof electronic connections.
MOLEX 2130830005 USB Type-C Connector Specifications:
- Product Family: USB
- Application: Industrial, waterproof connections
- Component Type: Receptacle
- Series: 213083
- Circuits (Loaded): 16
- Color - Resin: Black
- Durability (mating cycles max): 10,000
- Gender: Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Resin: Nylon
- Net Weight: 0.501g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 0.80mm
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 0.50mm
- Plating min - Mating: 0.762um
- Temperature Range - Operating: -40°C to +85°C
- Termination Interface: Style: Surface Mount
- Waterproof / Dustproof: Yes
- Current - Maximum per Contact: 5.0A
- Shield Type: Full Shield
- Voltage - Maximum: 30V AC/DC
- RoHS Compliant: Yes
- Halogen-Free: Yes
Buy the Molex 213083 – Reliable USB Type-C Shielded Receptacle for Industrial Applications
Experience the robust, waterproof design of this USB Type-C connector, featuring gold-plated contacts and a compact, surface-mount form factor. Its IPX8 rating ensures high resistance to dust and water, making it ideal for demanding industrial environments. With a maximum current of 5A per contact and operating temperature range from -40°C to +85°C, it provides reliable and long-lasting connections. Compatible with USB Type-C plugs and cables, this connector ensures seamless integration into various electronic systems, offering durability, high performance, and ease of installation.
Get Molex 213083 today—built for waterproof industrial connections with high durability and reliable performance.
Frequently Asked Questions
Where can I buy MOLEX 2130830005?
You can click on the BUY or RFQ button to purchase 2130830005 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2130830005?
You can download the 2130830005 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2130830005?
MOLEX
