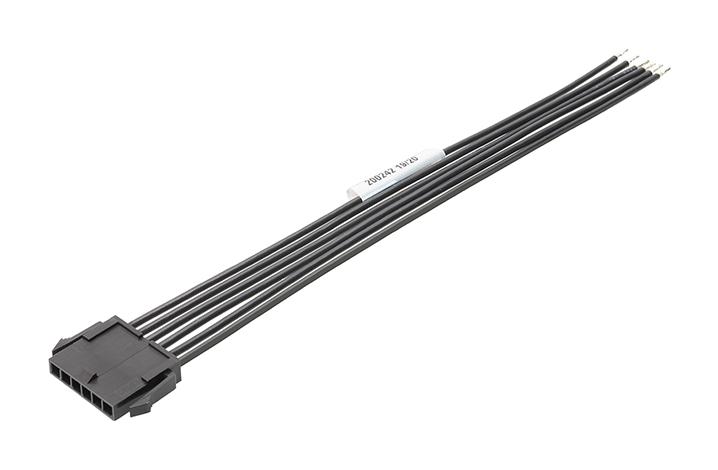

MOLEX 2147511023 Micro-Fit 3.0 Cable Assembly
The MOLEX 214751-1023 is a Micro-Fit 3.0 female-to-pigtail off-the-shelf (OTS) cable assembly. It's designed for a variety of applications including power distribution, wire-to-board connections, and wire-to-wire assemblies. The assembly features a single row configuration, a black resin body made of nylon, and phosphor bronze terminals with tin plating for both mating and termination surfaces. It is RoHS compliant and supports a maximum current of 8.5A per contact, making it suitable for demanding electrical applications.
MOLEX 2147511023 Micro-Fit 3.0 Cable Assembly Specifications:
- overview: Micro-Fit Connector System
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Micro-Fit 3.0-to-Pigtail
- cable_length: 600.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight: 13.760/g
- number_of_rows: 1
- pitch_mating_interface: 3.00mm
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: Yes
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: Discrete Wire, UL 10002
- current_maximum_per_contact: 8.5A
- upc: 193264585281
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 43640, 200875, 43650
- drawing_number: 2147511021-000
