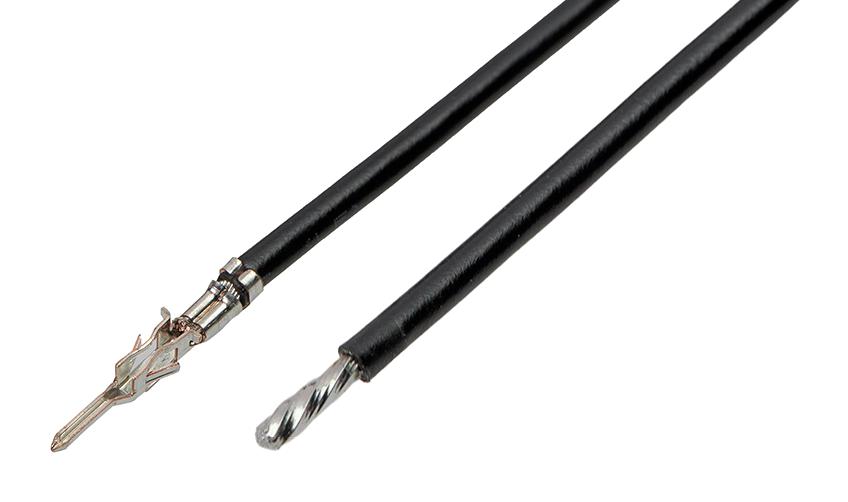

MOLEX 2147631224 Micro-Fit 3.0
The MOLEX 2147631224 is a pre-crimped lead assembly designed for power and wire-to-wire applications. This assembly features a Micro-Fit 3.0 male connector and a pigtail configuration, offering a convenient and reliable connection solution. The gold plating on the mating surface ensures excellent conductivity and corrosion resistance, while the tin plating on the termination surface facilitates secure crimping. Suitable for use with Micro-Fit 3.0 plug housings, this lead assembly simplifies integration into various systems and provides a robust electrical connection.
MOLEX 2147631224 Micro-Fit 3.0 Specifications:
- Part Number: 2147631224
- Status: Active
- Overview: Off-the-Shelf Pre-Crimped Leads
- Description: Pre-Crimped Lead Micro-Fit 3.0 Male-to-Pigtail, Gold (Au) Plated, 300.00mm Length, 18 AWG, Black
- Product Family: Cable Assemblies
- Series: 214763
- Application: Power, Wire-to-Wire
- Assembly Configuration: Pre-crimped Lead Only
- Connector to Connector: Micro-Fit 3.0 Crimp Terminals
- UPC: 193264575206
- Cable Length: 300.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Net Weight: 3.403/g
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Single Ended: Yes
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 18
- Wire/Cable Type: UL 10002
- Current - Maximum per Contact: 8.5A
- Sales Drawing: 2147631221-000
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
- Use With: Micro-Fit 3.0 Plug Housings 43020, 43640, Micro-Fit BMI Plug Housings 44300, 46625
Buy the 2147631224 MOLEX Micro-Fit 3.0 | myMectronic
Purchase the MOLEX 2147631224 Pre-Crimped Lead securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2147631224?
You can click on the BUY or RFQ button to purchase 2147631224 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147631224?
You can download the 2147631224 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147631224?
MOLEX
