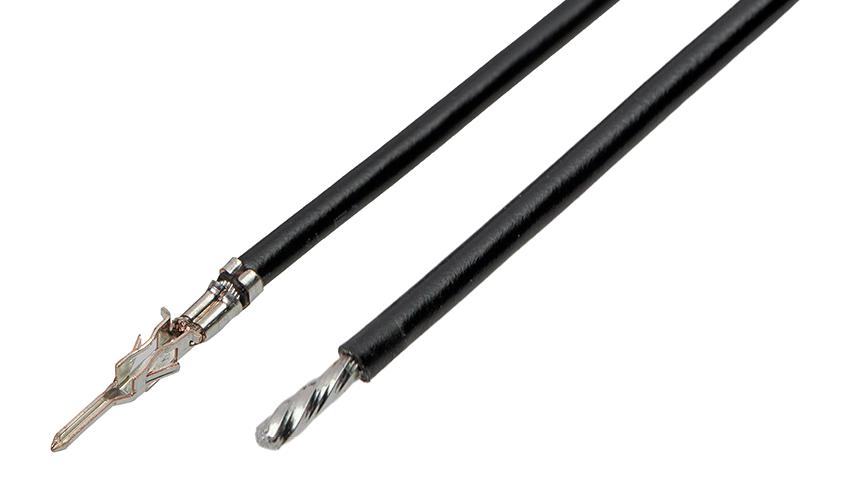

MOLEX 2147631225 Micro-Fit 3.0 Pre-Crimped Lead
The MOLEX 2147631225 is a pre-crimped lead assembly specifically engineered for use with Micro-Fit 3.0 connectors. This lead provides a convenient and reliable connection solution for power and wire-to-wire applications. The gold plating on the mating surface ensures excellent conductivity and corrosion resistance, while the tin plating on the termination surface facilitates secure crimping. The lead is constructed with phosphor bronze and features a black resin color. It is ideal for applications requiring a pre-terminated connection, simplifying assembly and reducing labor costs.
MOLEX 2147631225 Micro-Fit 3.0 Pre-Crimped Lead Specifications:
- Status: Active
- Overview: Off-the-Shelf Pre-Crimped Leads
- Product Family: Cable Assemblies
- Series: 214763
- Application: Power, Wire-to-Wire
- Assembly Configuration: Pre-crimped Lead Only
- Connector to Connector: Micro-Fit 3.0 Crimp Terminals
- UPC: 193264575213
- Cable Length: 450.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Net Weight: 5.020/g
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Single Ended: Yes
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 18
- Wire/Cable Type: UL 10002
- Current - Maximum per Contact: 8.5A
- Sales Drawing: 2147631221-000
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
- Use With Micro-Fit 3.0 Plug Housings: 43020, 43640
- Use With Micro-Fit BMI Plug Housings: 44300, 46625
