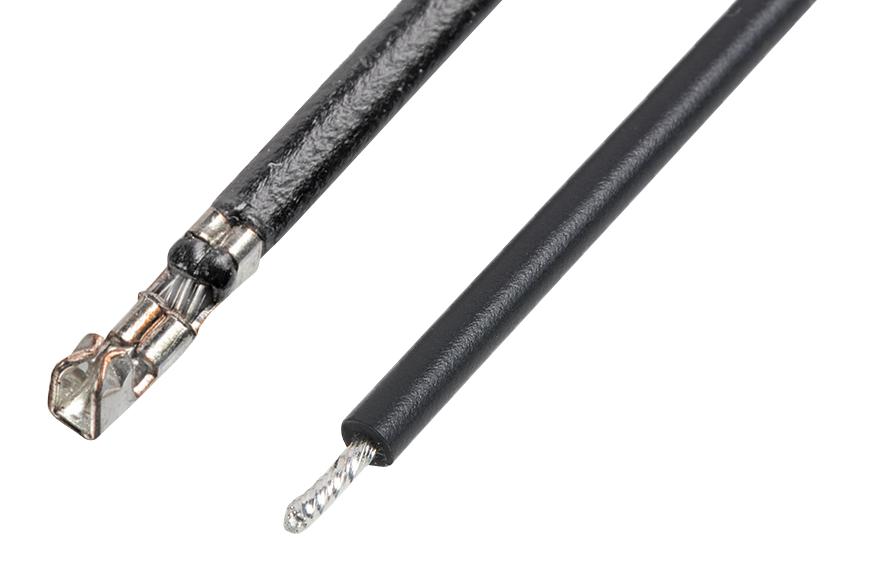

MOLEX 2149211223 PicoBlade Female-to-Pigtail
The PicoBlade Female-to-Pigtail pre-crimped lead is a reliable connector solution, with a 225mm length and 26 AWG wiring, suitable for electronic applications. Constructed from phosphor bronze with tin plating, it ensures excellent electrical conductivity and corrosion resistance. Designed for connector-to-connector assembly, this product supports UL 1061 standards, allowing a maximum current of 1.0A at 125V AC/DC. Its red color and compact design make it suitable for various electronic device wiring, providing secure and efficient electrical connections. This lead is RoHS, REACH, and halogen-free compliant, ensuring eco-friendly use and safety in diverse environments.
MOLEX 2149211223 PicoBlade Female-to-Pigtail Specifications:
- Cable Length: 225.00mm
- Wire Size AWG: 26
- Material: Phosphor Bronze
- Plating: Tin
- Color: Red
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V AC/DC
- Termination Interface: Crimp
- Wire Insulation Diameter: 1.04mm max.
- RoHS, REACH, and Halogen-Free Compliant
- Connector Type: Female-to-Pigtail
- Assembly Configuration: Connector to Connector
- Gender: Female-Pigtail
- Packaging: Bag
Buy the Buy Molex PicoBlade Female-to-Pigtail Part Number 2149211223 Online
Purchase the Molex PicoBlade Female-to-Pigtail pre-crimped lead online for secure, efficient, and reliable electrical connections. Measuring 225mm in length with 26 AWG wiring, it features durable tin-plated phosphor bronze construction and a vibrant red color for easy identification. Designed for connector-to-connector assembly, supporting UL 1061 standards with up to 1.0A current at 125V AC/DC, this lead is RoHS, REACH, and halogen-free, making it an environmentally friendly and safe choice for various electronic applications. Order now to ensure high-quality electrical connections.
Buy Molex 2149211223 now and experience unmatched reliability and performance in electronic wiring and connector solutions.
Frequently Asked Questions
Where can I buy MOLEX 2149211223?
You can click on the BUY or RFQ button to purchase 2149211223 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2149211223?
You can download the 2149211223 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2149211223?
MOLEX
