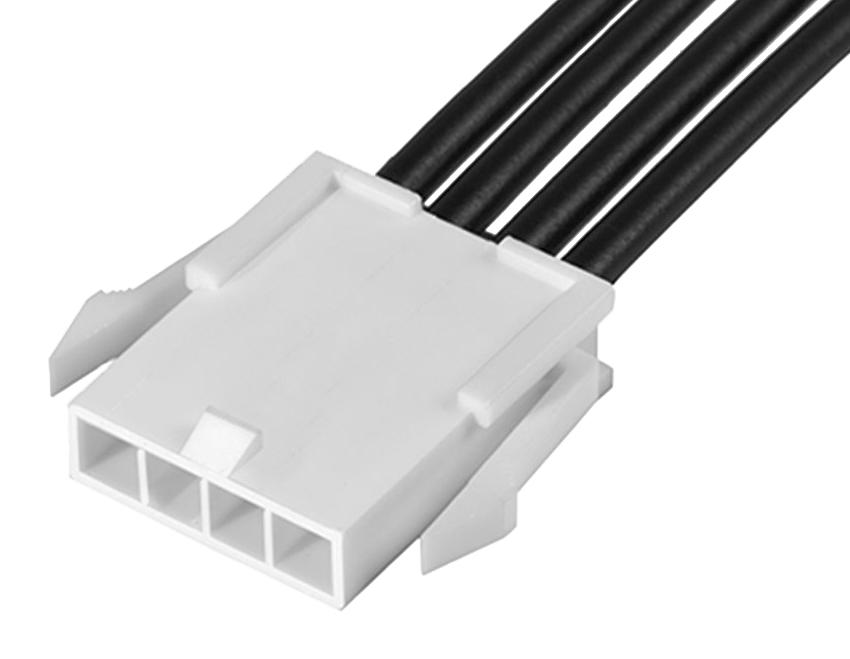

MOLEX 2153211041 Mini-Fit Jr. Power Connector
The Mini-Fit Jr. Female-to-Pigtail Off-the-Shelf cable assembly from the Mini-Fit family offers a 150mm length, four circuits, and a black resin color. Featuring tin-plated brass contacts, this single-row, discrete wire assembly is designed for power applications up to 9A and 600V, with wire insulation diameters of 1.80-3.10mm suitable for 16 AWG wires. The assembly includes crimp or compression terminations, ideal for wire-to-wire and wire-to-board connections, ensuring reliable performance in various electronic and power systems.
MOLEX 2153211041 Mini-Fit Jr. Power Connector Specifications:
- Series: Mini-Fit Jr.
- Type: Female-to-Pigtail
- Cable Length: 150.00mm
- Circuits: 4
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Size AWG: 16
- Wire Insulation Diameter: 1.80-3.10mm
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Termination Interface: Style: Crimp or Compression
Buy the Buy Molex Mini-Fit Jr. Part Number 2153211041 Online
Purchase the Molex Mini-Fit Jr. Power Connector Assembly online for a durable, reliable power solution. With a 150mm cable length, four circuits, and tin-plated metal contacts, this assembly ensures excellent electrical performance up to 9A and 600V. The black nylon housing and crimp or compression terminations provide secure connections ideal for power and electronics projects. Easy to install and compliant with RoHS standards, this cable assembly offers high-quality power distribution for various industrial and commercial applications.
Get Molex 2153211041 today—designed for reliable power connections with high current capacity and secure wire-terminals.
Frequently Asked Questions
Where can I buy MOLEX 2153211041?
You can click on the BUY or RFQ button to purchase 2153211041 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153211041?
You can download the 2153211041 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153211041?
MOLEX
