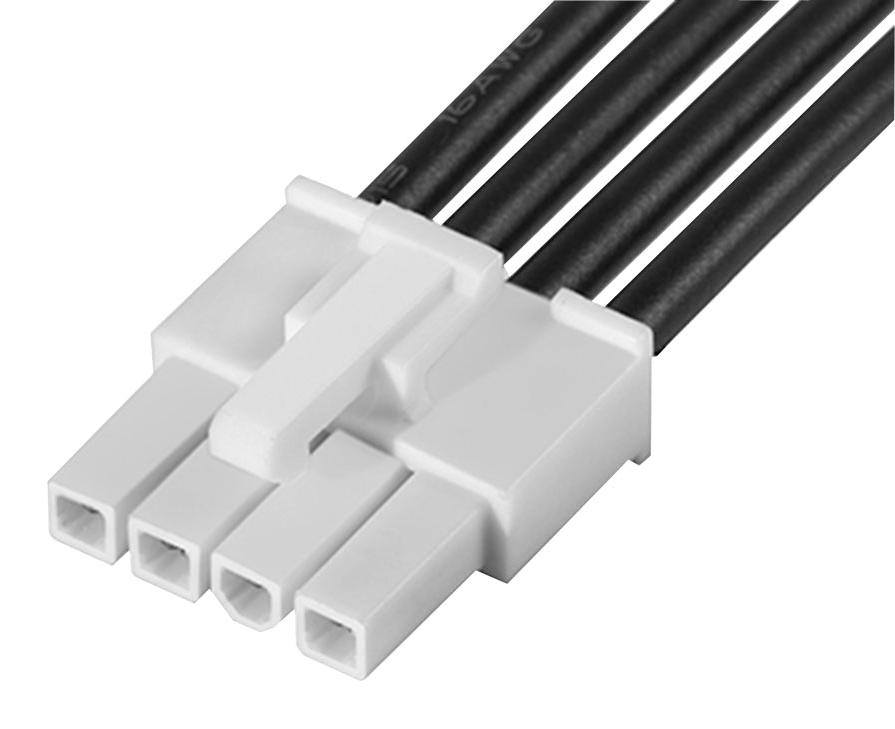

MOLEX 2153221042 Mini-Fit Jr. Cable Assembly
The MOLEX 215322-1042 is a Mini-Fit Jr. male-to-male cable assembly designed for power and wire-to-wire applications. It boasts a robust construction with a black nylon resin housing, brass terminals, and tin plating for enhanced durability and conductivity. This assembly is ideal for various industrial applications requiring secure and reliable power connections, such as automotive, consumer electronics, and industrial equipment. Its single-row design and 4-circuit configuration make it versatile for different wiring needs.
MOLEX 2153221042 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 300.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 32.244
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264597314
- material_info: Not Low-Halogen
- reach_svhc: Not Contained
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit TPA2 Cable Assembly 145135
- sales_drawing: 2153221041-000
