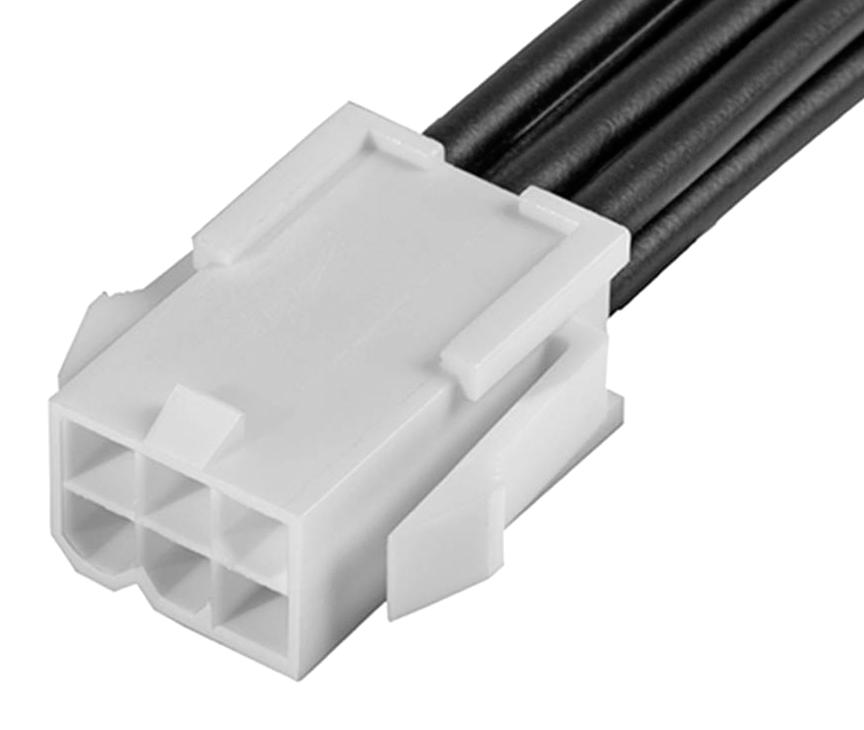

MOLEX 2153262063 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-2063 is a Mini-Fit Jr. female-to-pigtail off-the-shelf (OTS) cable assembly designed for power, wire-to-board, and wire-to-wire applications. It boasts a dual-row configuration, a black nylon resin housing, and brass terminals with gold mating plating and tin termination plating. This assembly is ideal for applications requiring robust and reliable power connections in various industrial and consumer electronics devices.
MOLEX 2153262063 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 600.00mm
- circuits_loaded: 6
- color: Black
- gender: Female-Pigtail
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 80.939
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact_a: 9.0
- voltage_max_v: 600
- upc: 193264590179
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- drawing_number: 2153262061-000
