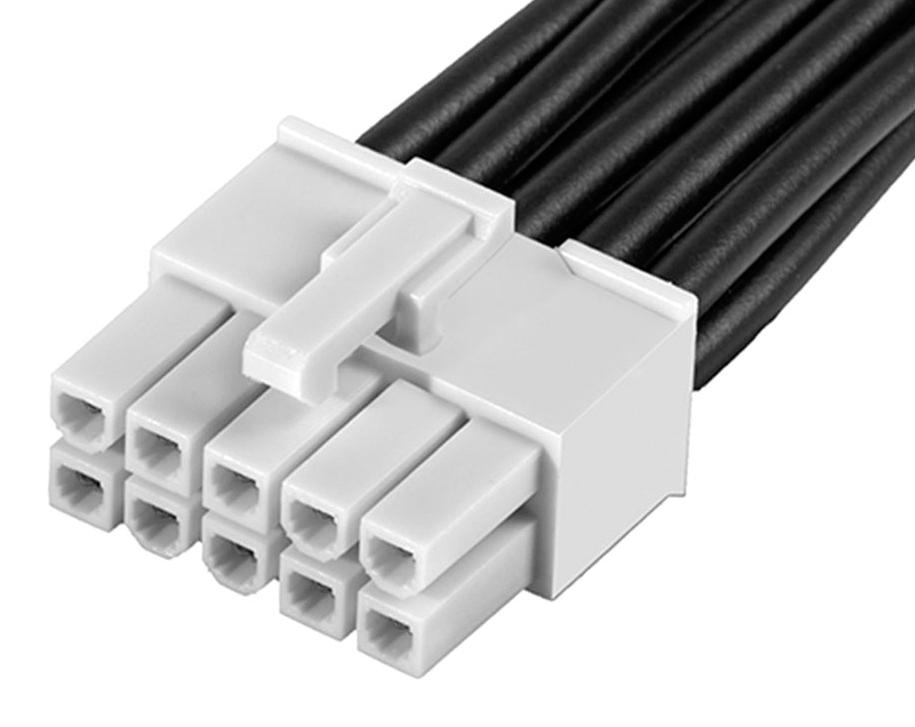

MOLEX 2153282101 Mini-Fit Power Cable
This Mini-Fit Jr. male-to-pigtail cable assembly features a dual row configuration with 10 circuits, 150mm length, gold (Au) plating, and black resin for power connection applications. It connects Mini-Fit Jr. receptacle housings and other components with a crimp or compression termination style. Designed for reliable high-current transfer, it supports up to 9.0A and 600V, with a wire size of 16 AWG and wire insulation diameter of 4.20mm. The assembly is RoHS and REACH compliant, ensuring environmentally friendly manufacturing standards. Its compact design facilitates easy installation in power and signal distribution systems.
MOLEX 2153282101 Mini-Fit Power Cable Specifications:
- Cable Length: 150.00mm
- Circuits: 10
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Size AWG: 16
- Wire Insulation Diameter: 4.20mm
- Maximum Current per Contact: 9.0A
- Maximum Voltage: 600V
- Termination Style: Crimp or Compression
- Application: Power, Wire-to-Wire
- Series: Mini-Fit Jr.
- RoHS & REACH Compliant: Yes
Buy the Molex Series Mini-Fit Jr. Power: 2153282101
Order the Molex Mini-Fit Power Cable Assembly today for your power and signal distribution needs. Designed with 10 circuits, 150mm length, and gold plating for excellent conductivity and durability. Its crimp or compression termination ensures secure connections, supporting up to 9A and 600V. The black resin housing is environmentally friendly and RoHS compliant, ideal for compact, reliable power connections in automotive, industrial, and electronic applications. Purchase online now for fast, dependable delivery of this high-quality power connector assembly.
Get Molex 2153282101 today—built for reliable power distribution with high current capacity and durable gold-plated contacts.
Frequently Asked Questions
Where can I buy MOLEX 2153282101?
You can click on the BUY or RFQ button to purchase 2153282101 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153282101?
You can download the 2153282101 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153282101?
MOLEX
