MOLEX 2153411215 Power Lead

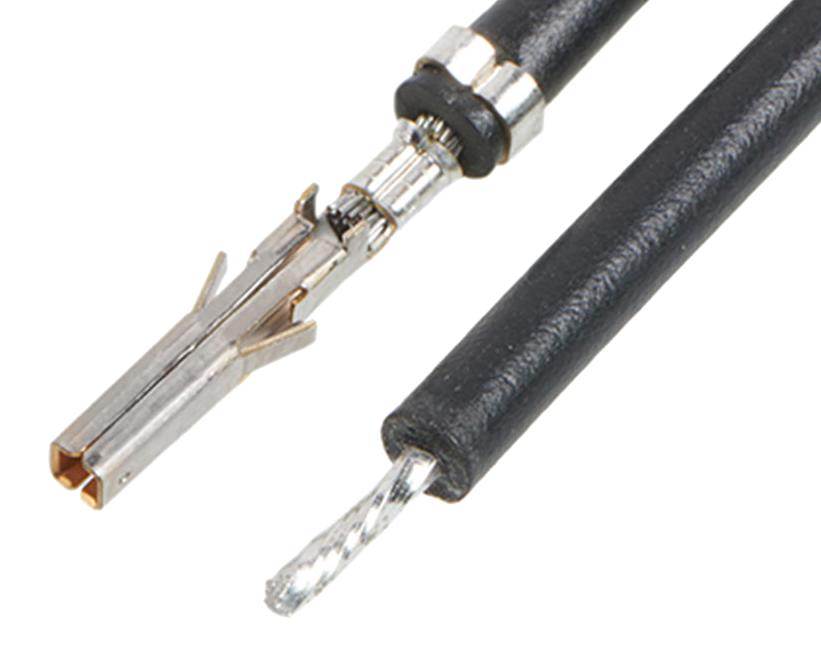

This pre-crimped lead features a Mini-Fit Jr. female-to-pigtail configuration, with gold (Au) plating for enhanced corrosion resistance. It is designed for power and wire-to-wire applications, with a length of 450mm, and is suitable for filling circuits with 18 AWG wire size. Made from brass with tin plating for durability, this lead operates at a maximum current of 9.0A and a voltage of 600V. It ensures reliable connections in industrial power systems, panels, and electronic assemblies, adhering to RoHS compliance for environmentally safe electronics.
MOLEX 2153411215 Power Lead Specifications:
- Product Family: Power, Wire-to-Board, Wire-to-Wire
- Application: Connector to Connector
- Assembly Configuration: Pre-crimped Lead
- Cable Length: 450.00mm
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 18
- Electrical Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Packaging Type: Bag
- Termination Interface Style: Crimp or Compression
- Net Weight: 7.377g
- RoHS Compliance: Yes
- Halogen-Free: No
- Suitable for: Mini-Fit Jr. Receptacle Housing, Panel Mounts
Buy the Molex 2153411215 – Reliable Power Connectors for Industrial Applications
Enhance your electrical assemblies with this high-quality pre-crimped Mini-Fit Jr. female-to-pigtail lead. Designed with gold plating for durability, it measures 450mm and supports 18 AWG wire for robust power connections. Made from brass with tin plating, it provides excellent conductivity, corrosion resistance, and reliability in industrial power systems. Ideal for connecting panels, components, and electronic devices, this lead ensures safe and efficient operation in demanding environments. Order online now to secure these dependable industrial connectors.
Buy Molex 2153411215 now and experience unmatched reliability and performance in power and wire-to-wire connections.
Frequently Asked Questions
Where can I buy MOLEX 2153411215?
You can click on the BUY or RFQ button to purchase 2153411215 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153411215?
You can download the 2153411215 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153411215?
MOLEX
