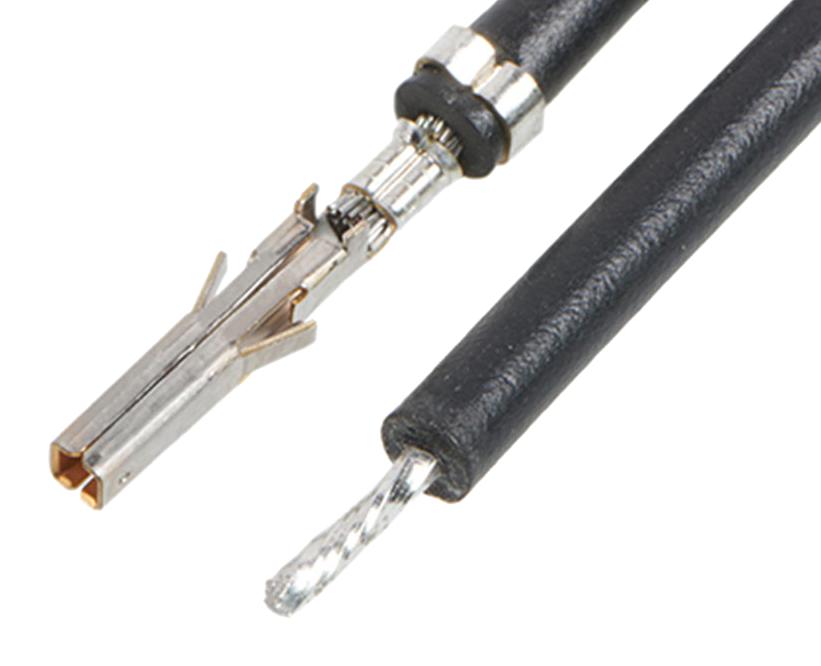

MOLEX 2153411224 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-1224 is a pre-crimped lead cable assembly designed for power and wire-to-board applications. This cable features a Mini-Fit Jr. female connector on one end and a pigtail configuration on the other, providing flexibility in connecting to various devices. The gold plating on the connector ensures reliable electrical contact, while the black resin color offers a clean and professional appearance. It is RoHS compliant and suitable for a wide range of industrial and commercial applications.
MOLEX 2153411224 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215341
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color: Black (Resin)
- material_metal: Brass
- plating_mating: Gold
- plating_termination: Tin
- net_weight: 6.924/g
- packaging_type: Bag
- end_type: Single Ended
- termination_interface: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- elv_compliance: Not Relevant
- rohs_status: Compliant
- reach_svhc_status: Not Contained
- china_rohs_status: Not Contained Per D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
