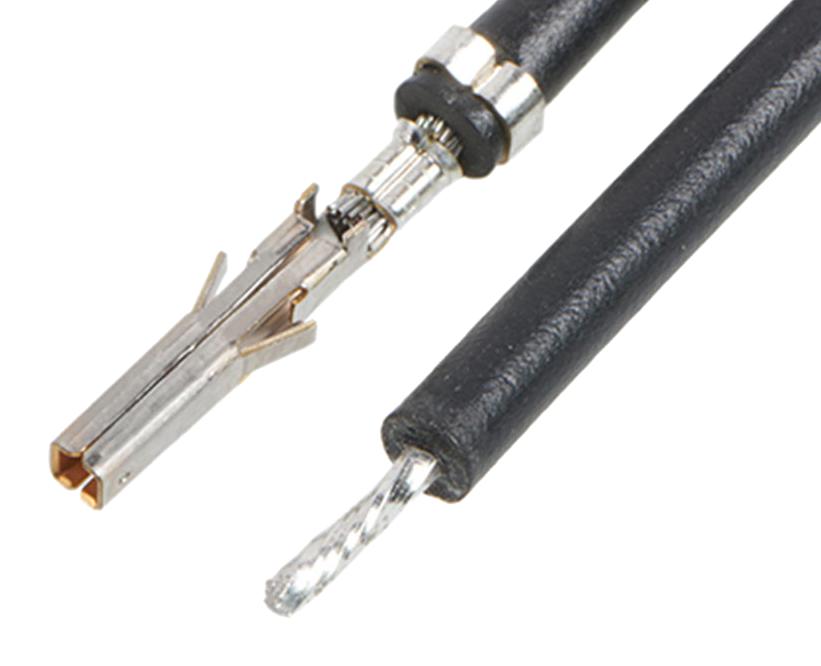

MOLEX 2153411225 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-1225 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire assemblies. It utilizes a Mini-Fit Jr. female connector transitioning to a pigtail, providing flexibility in system design. The gold plating on the mating interface ensures excellent conductivity and corrosion resistance, while the tin plating on the termination interface facilitates secure crimp connections. This cable is suitable for applications requiring a robust and reliable power connection.
MOLEX 2153411225 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215341
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color: Black (Resin)
- gender: Female-Pigtail
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- net_weight: 10.109/g
- packaging_type: Bag
- is_single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- elv_compliance: Not Relevant
- rohs_status: Compliant
- reach_svhc_status: Not Contained
- china_rohs_status: Not Contained Per D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
- upc: 193264559589
