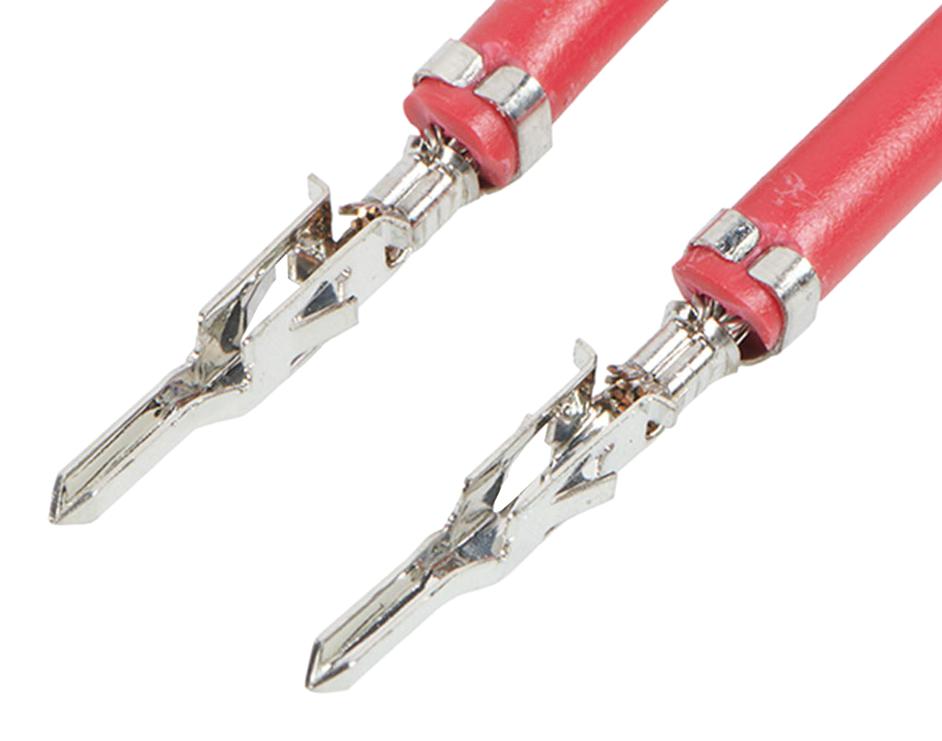

MOLEX 2153422122 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215342-2122 is a pre-crimped lead assembly designed for power and wire-to-wire applications. This assembly utilizes Mini-Fit Jr. connectors on both ends, providing a secure and reliable connection. The lead is 150.00mm in length, utilizes 16 AWG wire, and features a red resin color with tin plating on both the mating and termination interfaces. It is RoHS compliant and suitable for various industrial and commercial applications requiring robust power transmission.
MOLEX 2153422122 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215342
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr. Both Ends
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 3.743/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- sales_drawing: 2153421121-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
