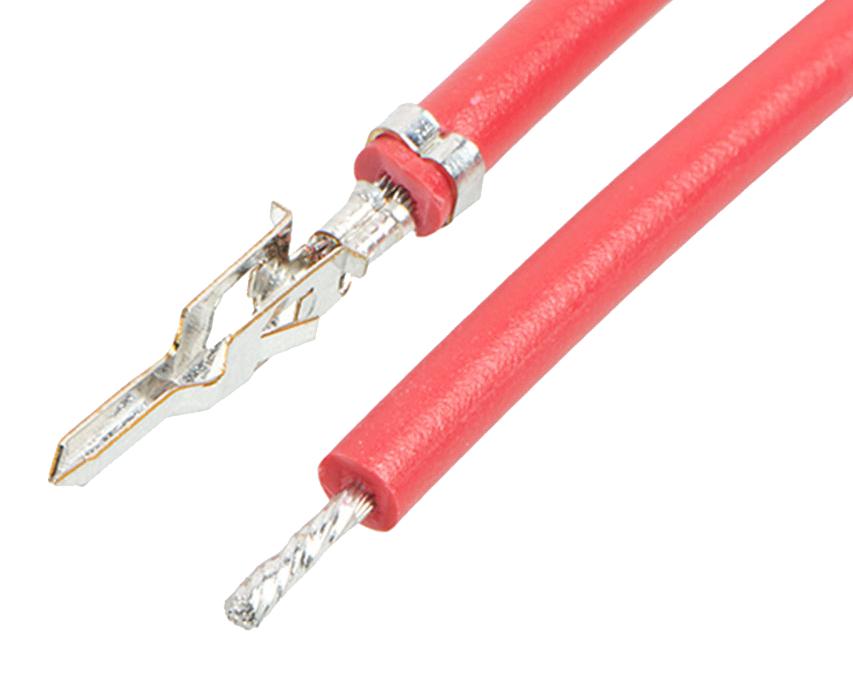

MOLEX 2153432105 Mini-Fit Jr. Pigtail
The MOLEX 215343-2105 is a pre-crimped lead assembly designed for power and wire-to-wire applications. It combines a Mini-Fit Jr. male connector with a pigtail, providing a convenient and reliable connection solution. The assembly features tin plating for enhanced conductivity and corrosion resistance, a 450mm length for flexibility, and is constructed with 20 AWG wire. This component is ideal for various industrial and commercial applications where a pre-terminated connection is required.
MOLEX 2153432105 Mini-Fit Jr. Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 5.534/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 20
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560530
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
