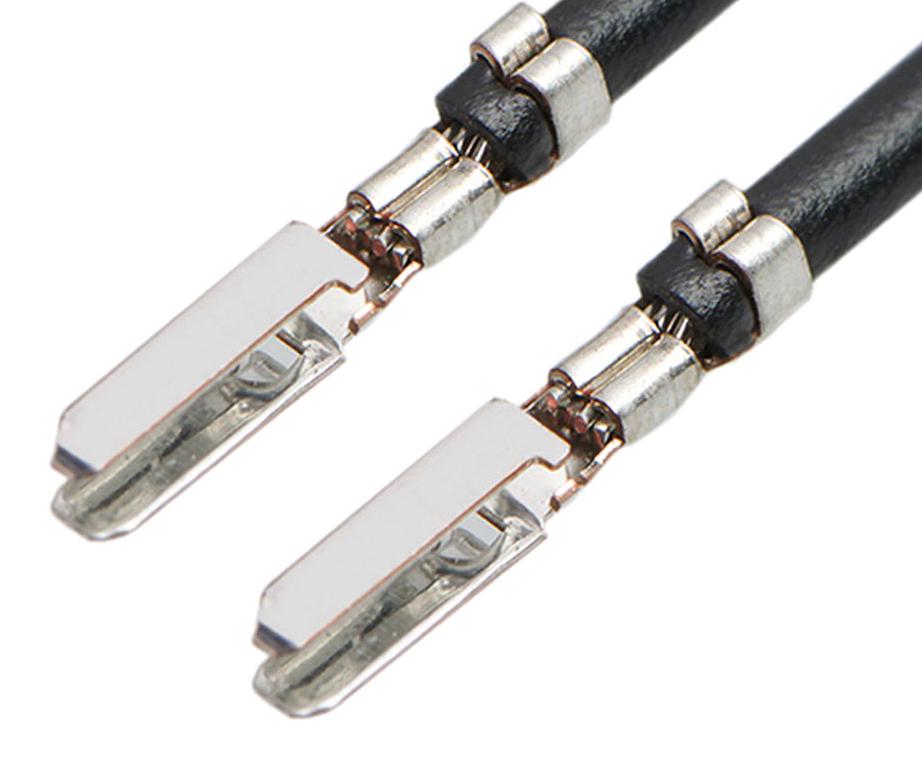

MOLEX 2157111124 CLIK-Mate Pre-Crimped Lead
The MOLEX 215711-1124 is a pre-crimped lead assembly within the CLIK-Mate series, offering a convenient and reliable solution for wire-to-board connections. This assembly features a male-to-pigtail configuration, ensuring compatibility with CLIK-Mate connectors. The tin plating on both mating and termination surfaces provides excellent conductivity and corrosion resistance. Ideal for signal transmission applications, this lead is designed for ease of use and consistent performance in various industrial and commercial settings.
MOLEX 2157111124 CLIK-Mate Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 1.040/g
- packaging_type: Bag
- plating_min_mating: 0.406µm
- plating_min_termination: 0.406µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_max_per_contact: 2.0A
- voltage_max: 100V AC (RMS)/DC
- elv_compliance: Not Relevant
- rohs_status: Compliant
- china_rohs: REACH SVHC Not Contained
- halogen_free: Not Low-Halogen
- use_with_housing: 502578, 503149
- drawing_number: 2157111121-000
