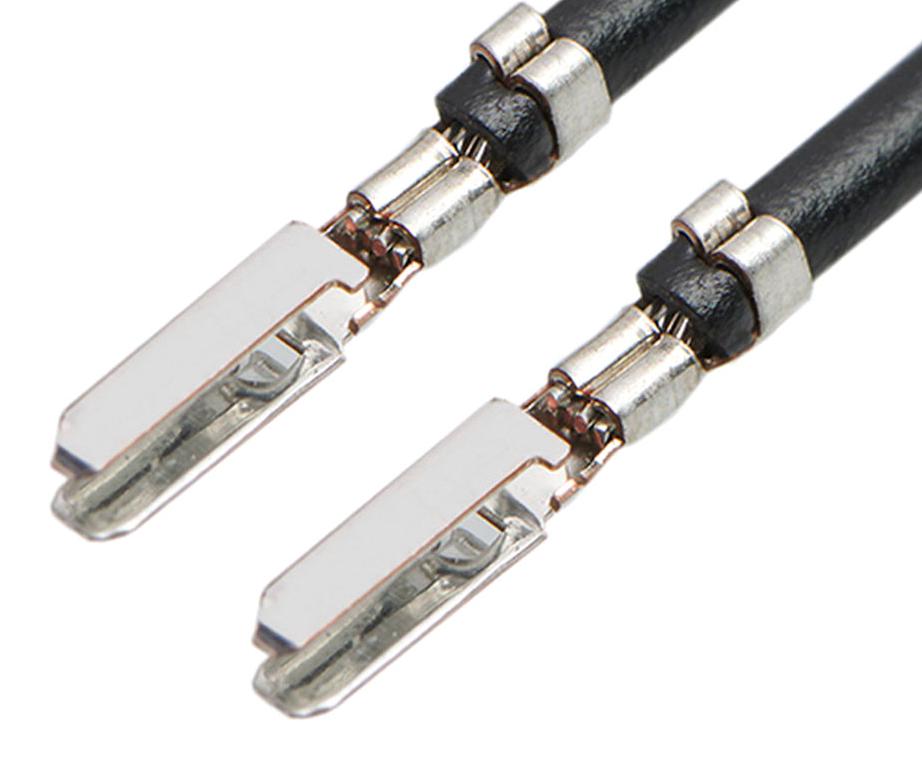

MOLEX 2157111125 CLIK-Mate Pre-Crimped Lead
The MOLEX 215711-1125 is a pre-crimped lead assembly, part of the CLIK-Mate series, designed for efficient and reliable wire-to-board connections. This assembly provides a pre-terminated solution, simplifying the connection process and reducing assembly time. It is suitable for signal transmission applications, featuring a male-to-pigtail configuration with tin plating for enhanced conductivity and corrosion resistance. The black resin color provides insulation and aesthetic appeal. This component is RoHS compliant and ideal for various industrial and commercial applications requiring secure and dependable electrical connections.
MOLEX 2157111125 CLIK-Mate Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 1.520 g
- packaging_type: Bag
- plating_min_mating: 0.406µm
- plating_min_termination: 0.406µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_max_per_contact: 2.0A
- voltage_max: 100V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
