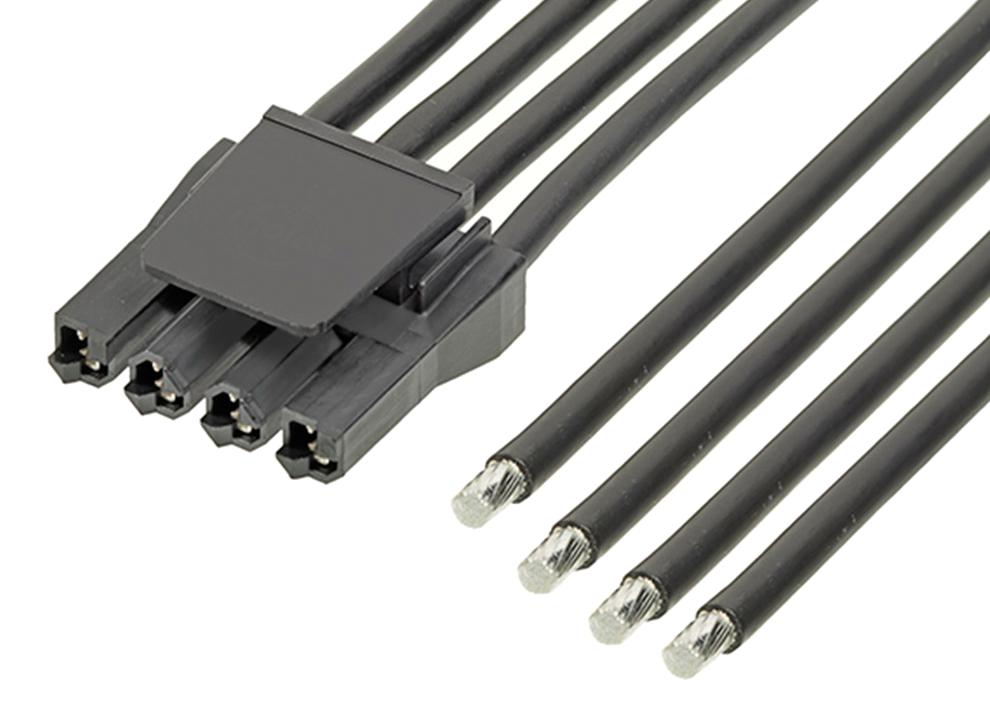

MOLEX 2160111041 Super Sabre
The 216011 series Super Sabre-to-Pigtail cable assembly is designed for high-current and high-voltage applications, offering 34A per blade and supporting up to 600V. It features a low-profile, cost-efficient design optimized for 10 to 12 AWG wires, with silver-plated alloy terminals ensuring high conductivity and durability. Fully isolated flat-blade terminals with four contact points provide secure connections and prevent corrosion. Equipped with positive latch and terminal position assurance features, it performs reliably in vibration-intensive environments. Suitable for automotive, medical, consumer, and telecommunications uses, rated for +105°C and compliant with safety standards.
MOLEX 2160111041 Super Sabre Specifications:
- Cable Length: 150.00mm
- Circuits: 4
- Color: Black
- Material - Metal: Copper
- Material - Plating Mating: Silver
- Material - Plating Termination: Matte Tin, Nickel
- Material - Resin: Nylon
- Wire Size: 10 AWG
- Wire/Cable Type: UL 11028
- Current per Contact: 34.0A
- Voltage Support: Up to 600V
- Operating Temperature: Up to +105°C
- Contact Type: Flat-blade, isolated
- Number of Rows: 1
- Gender: Female-Pigtail
- Locking: Yes
- Standards and Certifications: UL1977, UL60950, USCAR-2 Level 3
- Compliance: RoHS, China RoHS, Low-Halogen, REACH SVHC not contained
Buy the Buy Molex Super Sabre Part Number 2160111041 Online
Purchase the Molex Super Sabre cable assembly online today to ensure reliable high-current power connections for automotive, consumer, medical, and telecom applications. With a 34A current rating per blade and support for up to 600V, this assembly features a cost-effective, low-profile design optimized for 10-12 AWG wires. It boasts silver-plated terminals for superior conductivity, and its fully isolated flat-blade contacts with four points ensure secure, corrosion-resistant connections. Rated for +105°C and compliant with key safety standards, it offers durability and safety for demanding environments.
Buy Molex 2160111041 now and experience high-current reliability, secure connections, and durable automotive-grade performance.
