MOLEX 2160111043 Super Sabre

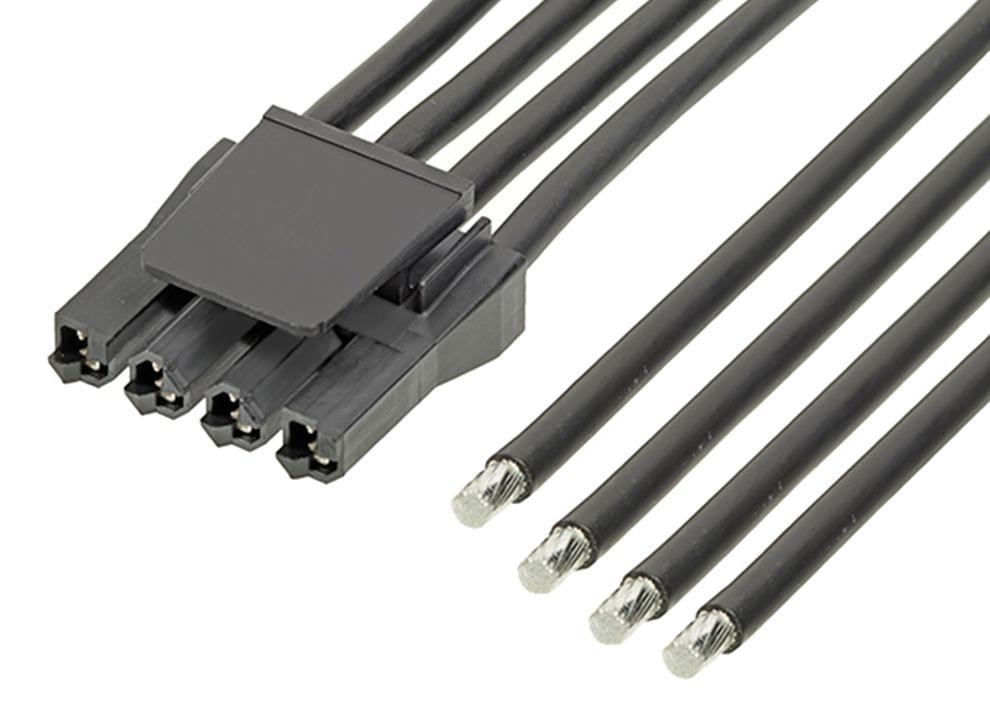

The 216011 series Super Sabre-to-Pigtail cable assembly delivers a high current of 34A, suitable for applications up to 600V. Designed for high-current, high-voltage use, it features a low-profile, cost-effective design optimized for 10 to 12 AWG wires. The silver-plated, high-conductivity alloy terminals ensure reliable, high-performance connections, reducing fretting corrosion. It includes a flat-blade terminal with four independent contact points, fully isolated for protection against damage and shock. Made with durable nylon housing and copper contacts, it features positive latch and terminal position assurance to prevent back-out in vibrating environments, meeting UL standards and operating up to +105°C.
MOLEX 2160111043 Super Sabre Specifications:
- Cable Length: 600.00mm
- Circuits: 4
- Material - Resin: Nylon
- Material - Metal: Copper
- Material - Plating Mating: Silver
- Material - Plating Termination: Matte Tin, Nickel
- Wire Size: AWG 10
- Current - Maximum per Contact: 34.0A
- Voltage Rating: Up to 600V
- Operating Temperature: Up to +105°C
- Pitch - Mating Interface: 7.50mm
- Contact Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Color: Black
- Conforms to safety standards: UL 1977 and UL 60950
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Low-Halogen: Yes
- Durability features: Positive latch, terminal position assurance (TPA)
Buy the Buy Molex Super Sabre Part Number 2160111043 Online
Secure your high-current, high-voltage connections today with the Molex Super Sabre cable assembly. Designed for demanding applications, this 4-circuit assembly supports up to 34A and 600V, making it ideal for automotive, medical, and telecommunications industries. Its optimized design for 10-12 AWG wires features silver-plated high-conductivity terminals for maximum performance and reduced corrosion. The durable nylon housing ensures safety and longevity, while positive latch and terminal position assurance keep connections secure even in high-vibration environments. Order online for swift delivery and dependable performance.
Buy Molex 2160111043 now and experience reliable, high-current power connections with durable nylon housing and vibration-resistant features.
Frequently Asked Questions
Where can I buy MOLEX 2160111043?
You can click on the BUY or RFQ button to purchase 2160111043 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2160111043?
You can download the 2160111043 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2160111043?
MOLEX
