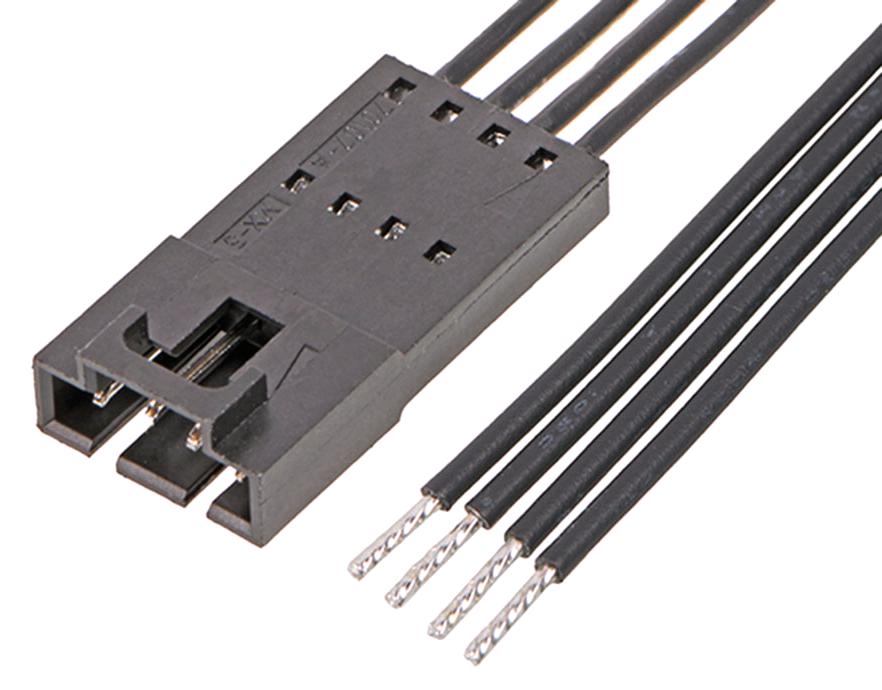

MOLEX 2162731042 Stackable Cable Assembly
The off-the-shelf stackable linear positive lock cable assembly supports robust wire-to-wire connections for various electronic and industrial applications. Featuring a 150mm length, tin-plated phosphor bronze contacts, and a polyester alloy housing, it ensures reliable performance in high-vibration environments. Designed for versatility, this assembly incorporates secure positive-lock interfaces, split-peg PCB headers, and multiple termination options including crimp and FFC. It is rated for 600V AC/DC, up to 3A, with a temperature range of -40°C to +105°C, making it ideal for telecommunications, medical, industrial, and consumer electronics.
MOLEX 2162731042 Stackable Cable Assembly Specifications:
- Cable Length: 150.00mm
- Number of Circuits: 4
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Housing Material: Polyester Alloy
- Operating Temperature Range: -40°C to +105°C
- Voltage Rating: 600V AC/DC
- Current Maximum per Contact: 3A
- Locking Mechanism: Positive lock with connector position assurance
- Termination Style: Crimp or FFC
- Housing Color: Black
- Net Weight: 4.190 grams
- Durability: Up to 25 mating cycles
- Compliance: UL 11028, CSA LR19980, RoHS, China RoHS, ELV not relevant
- Conforms to safety and environmental standards for professional electrical assemblies
Buy the Buy Molex Cable Assembly Part Number 2162731042 Online
Purchase the Molex stackable cable assembly online for versatile, high-performance wire-to-wire connections suitable for industrial, consumer, and medical applications. Featuring secure positive locks and a 150mm length, it offers excellent reliability in high-vibration settings. With tin-plated contacts, a durable polyester alloy housing, and rated for 600V and 3A, it ensures safety and efficiency. Easy to install with crimp or FFC termination options, this assembly supports various configurations and complies with global safety standards, making it ideal for engineering, electronics, and industrial design needs.
Buy Molex 2162731042 now and experience unmatched reliability and performance in secure, vibration-resistant electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 2162731042?
You can click on the BUY or RFQ button to purchase 2162731042 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162731042?
You can download the 2162731042 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162731042?
MOLEX
