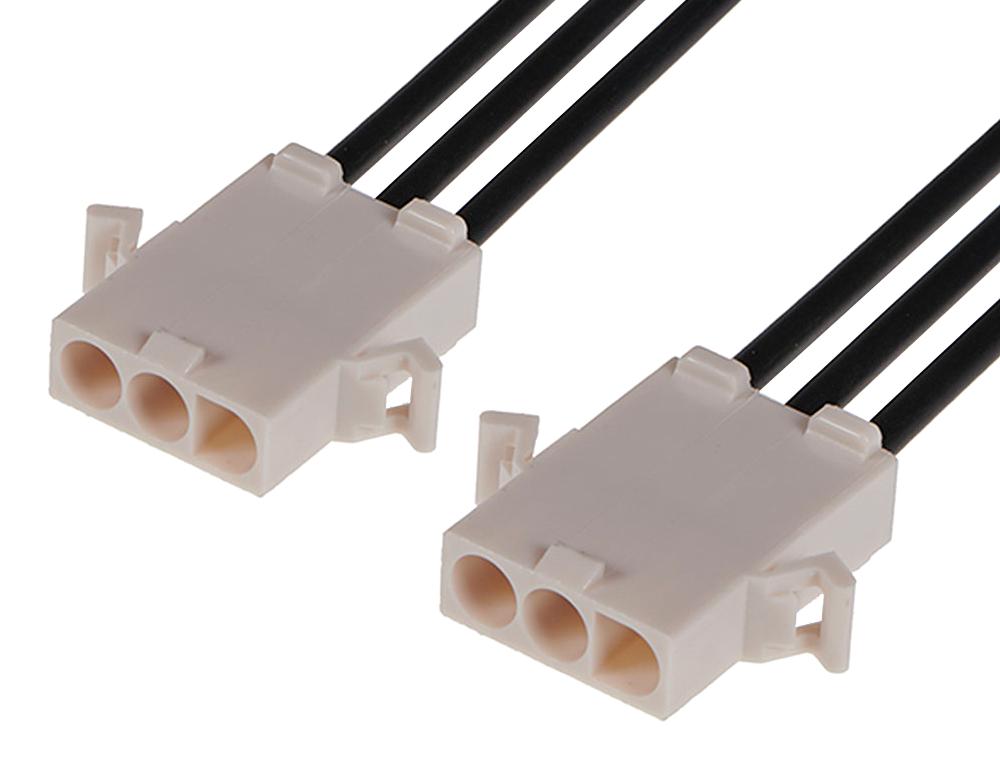

MOLEX 2162921031 Discreet Cable Assembly
The 216292 series standard .093-inch male-to-male discrete cable assembly provides a durable, versatile, and reliable wiring connection solution for power and signal transmission. These assemblies feature a length of 150mm with tin plating for corrosion resistance and support up to 12A of current and 600V maximum voltage. Designed for easy integration with standard .093-inch connector housings, they include polarizing and keying features to prevent mis-mating. Suitable for applications requiring a temperature range of -40°C to +105°C, these assemblies are ideal for various industrial and electronic systems requiring secure, off-the-shelf cable solutions.
MOLEX 2162921031 Discreet Cable Assembly Specifications:
- Connector Type: Male-to-Male
- Wire/Cable Length: 150.00mm
- Number of Circuits: 3
- Material - Metal: Brass
- Material - Plating Mating & Termination: Tin
- Material - Resin: Nylon
- Current Rating: 12.0A
- Voltage Rating: 600V AC/DC
- Wire Insulation Diameter: 6.70mm
- Wire Size: 14 AWG
- Operating Temperature Range: -40°C to +105°C
- Certification: UL 1015
- Color - Resin: Natural
- Assembly Type: Discrete Wire Assembly
- Locking: Yes
- Plating Thickness: 0.508um
- Maximum Cycles: 25
- Application: Power, Wire-to-Wire, Wire-to-Board
- RoHS Compliance: Yes
- Elv Status: Not Low-Halogen
Buy the Buy Molex Standard 093 Connectors Part Number 2162921031 Online
Enhance your electronic and power systems with Molex discreet cable assemblies. The 2162921031 model offers a dependable solution with a 150mm length, rated for 12A and 600V. Crafted with durable tin plating, these assemblies ensure long-lasting corrosion resistance and electrical stability. Designed for easy insertion with polarized features, compatible with standard .093-inch connectors, and rated for temperatures between -40°C to +105°C, they are perfect for industrial, automation, and electronic applications requiring secure, off-the-shelf wiring solutions.
Get Molex 2162921031 today—built for reliable power and signal connections with durable tin plating and versatile mounting options.
Frequently Asked Questions
Where can I buy MOLEX 2162921031?
You can click on the BUY or RFQ button to purchase 2162921031 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162921031?
You can download the 2162921031 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162921031?
MOLEX
