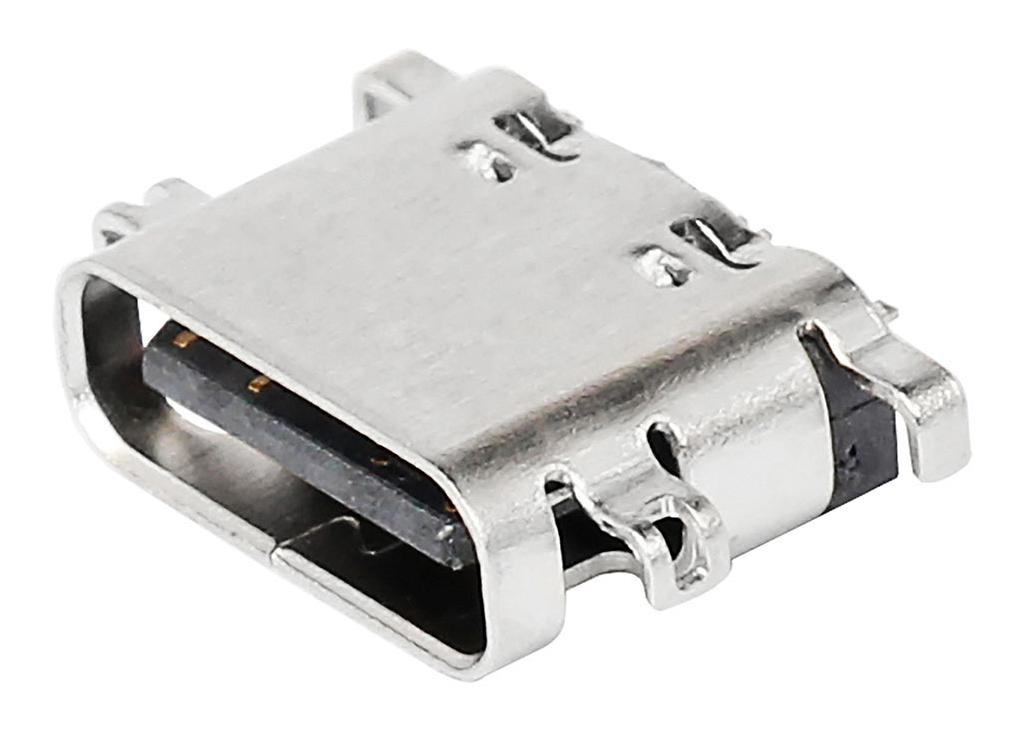

MOLEX 2169900001 USB Type-C Receptacle
This USB 2.0 Type-C receptacle in mid-mount, 16-circuit design supports up to 480 Mbps data transfer speeds and 5.0A current. Featuring a robust metal shell, easy SMT soldering, and an EMI shield, it ensures durability and excellent signal integrity. Suitable for industrial, consumer electronics, and automotive applications, it offers space-saving design, high reliability, and eco-friendly RoHS compliance. Its compact form and high-quality contact plating make it ideal for modern portable devices, laptops, and high-speed data transfer systems, providing a dependable connection in diverse operating environments.
MOLEX 2169900001 USB Type-C Receptacle Specifications:
- Support: USB 2.0, 16 circuits
- Data Transfer Rate: Up to 480 Mbps
- Current: Max 5.0A
- Voltage: Max 30V DC/AC
- Housing: High-temperature Nylon, LCP
- Contact Material: Gold Flash over 0.75 micron minimum
- Durability: 10,000 mating cycles
- Insertion Force: Zero Insertion Force
- Mating Force: 5 to 20N
- Unmating Force: 8 to 20N (1-30 cycles), 6 to 20N (after 10,000 cycles)
- Contact Resistance: Max 50 milliohms initially
- Dielectric Withstanding Voltage: 100V AC
- Insulation Resistance: Min 100 Megohms
- Operating Temperature Range: -40°C to +85°C
- PCB Thickness: 0.80mm
- RoHS, Halogen Free
Buy the Molex Series USB 2.0 Type-C Receptacle: 2169900001
Purchase the Molex USB Type-C Receptacle in mid-mount, 16-circuit design, offering support for up to 480 Mbps data rate and 5.0A power. Its high-temperature nylon housing combined with gold-plated contacts ensures durability and excellent conductivity. Easy to solder with a zero insertion force design, it enhances assembly efficiency and provides reliable performance in industrial, consumer, and automotive applications. Protect your devices with this space-saving, RoHS-compliant connector that guarantees high reliability and long service life.
Buy Molex 2169900001 now and experience unmatched reliability and high-speed data transfer for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2169900001?
You can click on the BUY or RFQ button to purchase 2169900001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2169900001?
You can download the 2169900001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2169900001?
MOLEX
