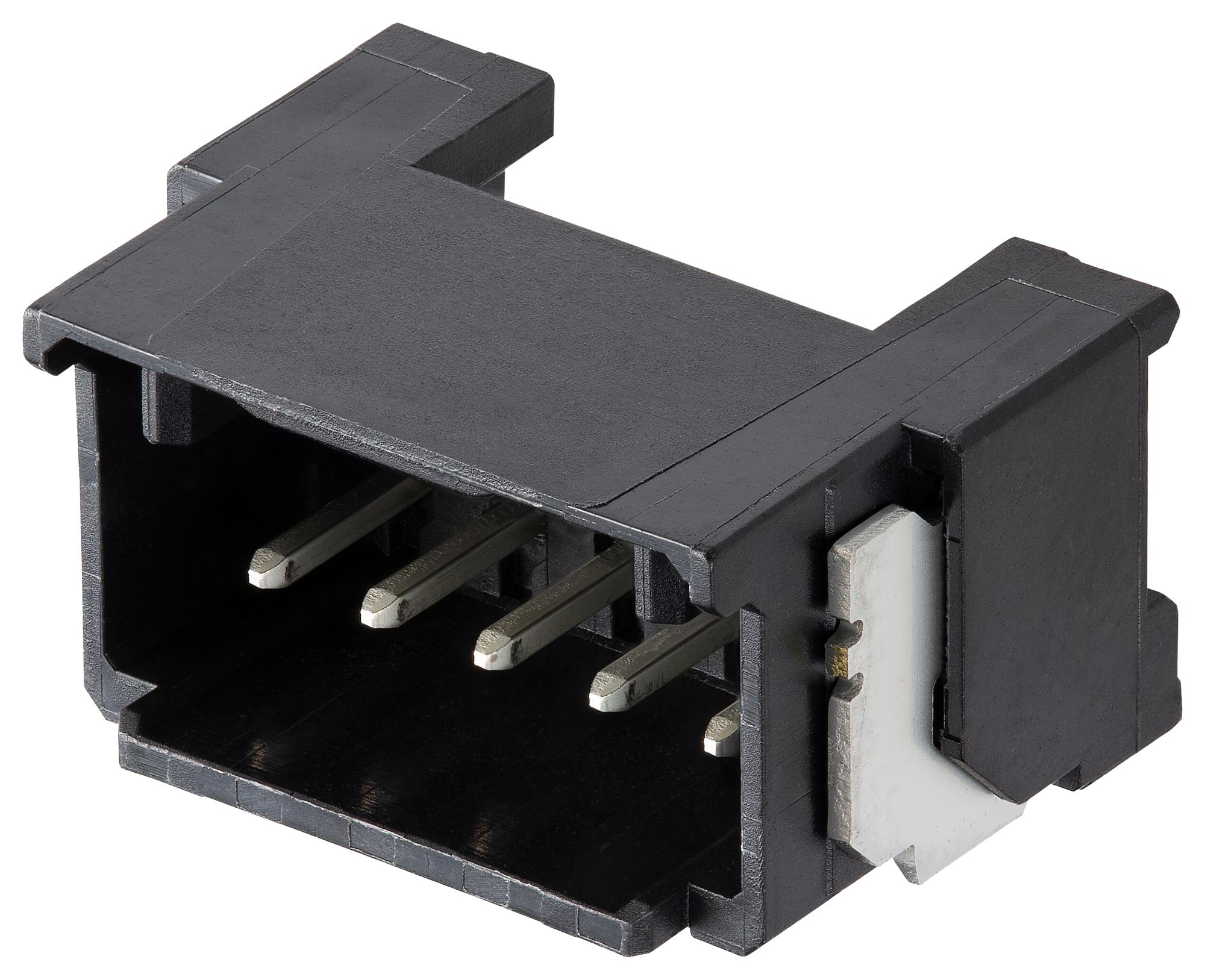

MOLEX 2170640031 Micro-One Wire-to-Board Header
The MOLEX 217064-0031 is a Micro-One wire-to-board header, offering a compact and reliable solution for connecting wires to PCBs. Its right-angle orientation and single-row design make it suitable for space-constrained applications. The header is glow-wire capable, ensuring compliance with relevant safety standards. It is commonly used in consumer electronics, automotive, and industrial equipment where secure and compact wire-to-board connections are required.
MOLEX 2170640031 Micro-One Wire-to-Board Header Specifications:
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, 3 Circuits, Tin-Bismuth Plating, Black
- circuits_loaded: 3
- circuits_maximum: 3
- color_resin: Black
- durability_mating_cycles: 30
- glow_wire_capable: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating: Tin-Bismuth
- material_resin: Polyamide
- number_of_rows: 1
- orientation: Right Angle
- pcb_retention: Yes
- pitch_mating_interface: 2.00mm
- polarized_to_pcb: Yes
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 4.0A
- voltage_maximum: 250V AC (RMS)/DC
- material_info_reach_svhc: Not Contained Per - D(2020)9139-DC (19 Jan 2021)
- halogen_free_status: Not Low-Halogen
- series: 217064 Series
- mates_with: Micro-One Receptacle Housing 205979
