MOLEX 2175212123 Signal Wire Connector

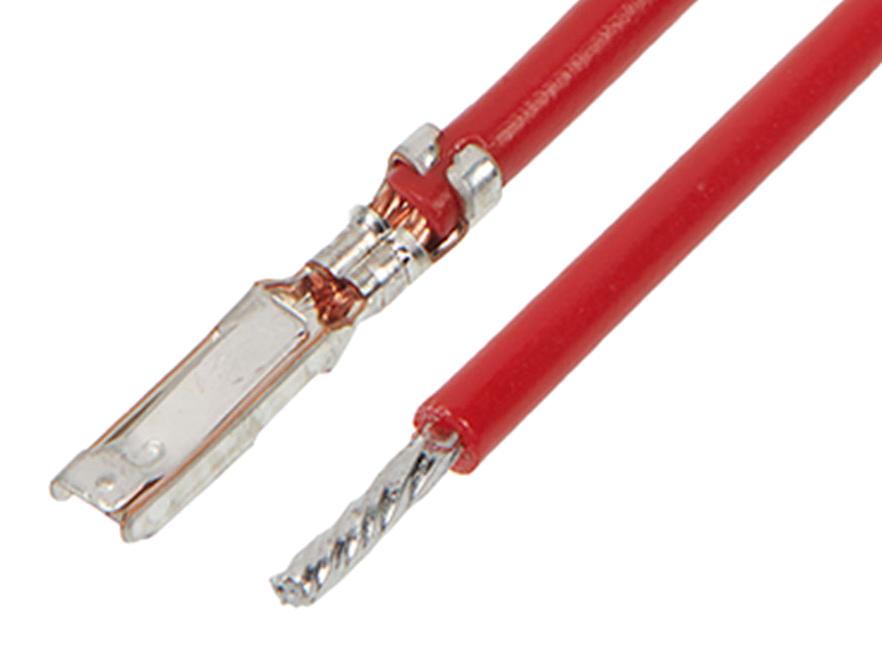

The Pre-Crimped Lead Mizu-P25 Female-to-Pigtail is a versatile connector designed for reliable electrical connections in wire-to-wire applications. Featuring tin-plated phosphor bronze contacts, this 225mm long assembly supports 22 AWG wires and is suitable for discrete wiring tasks. Ideal for connecting components in electronic and electrical systems, it offers easy crimp or compression termination with a maximum voltage rating of 125V. The product is RoHS compliant, halogen-free, and features a red resin housing for clear identification and safety in assembly processes.
MOLEX 2175212123 Signal Wire Connector Specifications:
- Series: 217521
- Application: Assembly, Connector to Connector
- Cable Length: 225.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 22
- Voltage - Maximum: 125V
- Termination Interface: Crimp or Compression
- Wire/Cable Type: 1x0.50mm FLRY-B, N/A
- Certification: RoHS Compliant, Halogen-Free, ELV Not Relevant
Buy the Buy Molex Signal Wire-to-Wire Part Number 2175212123 Online
Purchase the Molex 2175212123 Pre-Crimped Lead, a high-quality wire-to-wire connector designed for electronic and electrical applications. This 225mm long, 22 AWG connector features tin-plated phosphor bronze contacts, ensuring excellent conductivity and corrosion resistance. Its easy crimp or compression termination makes installation quick and secure. RoHS compliant and halogen-free, it is suitable for various professional wiring environments. Enhance your project with this reliable, durable, and safety-certified connector, available for easy online ordering today.
Get Molex 2175212123 today—built for reliable electrical connections and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 2175212123?
You can click on the BUY or RFQ button to purchase 2175212123 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2175212123?
You can download the 2175212123 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2175212123?
MOLEX
