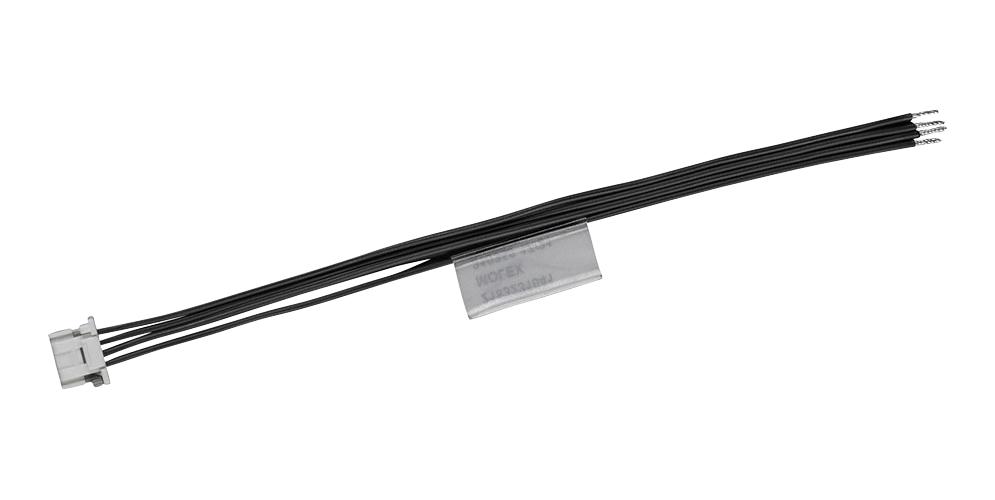

MOLEX 2183231041 Pigtail Cable Assembly
The 218323 series 2mm pitch DuraClik ISL-to-Pigtail cable assembly offers a reliable off-the-shelf solution for automotive, industrial automation, and consumer electronics. It features an audible click for mating confirmation, an enclosed contact design to protect against dust and debris, and provides flexible design options. Rated for 60V AC/DC and accommodating 22 AWG wire, it has a white PBT housing with copper alloy contacts, tin plating, and nickel underplating. Suitable for crimp or compression termination, it operates from -40°C to +105°C and supports up to 20 mating cycles, ensuring durability and performance.
MOLEX 2183231041 Pigtail Cable Assembly Specifications:
- Pitch: 2.00mm
- Length: 150.00mm
- Number of Circuits: 4
- Housing Material: PBT
- Housing Color: White
- Contacts Material: Copper Alloy
- Contact Plating: Tin
- Maximum Voltage: 60V AC/DC
- Wire Size: 22 AWG
- Termination: Crimp or Compression
- Operating Temperature Range: -40°C to +105°C
- Mating Cycles: Up to 20
- Rated Current per Contact: 3.0A
- Applicable Applications: Automotive, Consumer Electronics, Industrial Automation
- Compliance: RoHS, ELV
Buy the Molex 218323U1 – Reliable Pigtail Cable Assembly for Industrial Applications
Order the Molex 218323 series Pigtail Cable Assembly online today for a dependable solution in automotive, industrial automation, and consumer electronics. This 2mm pitch connector offers easy mating, dust protection, and flexibility, rated at 60V and supporting 22 AWG wire. With a durable PBT housing and copper alloy contacts, it ensures high performance over many mating cycles. Ideal for crimp or compression termination, this assembly operates from -40°C to +105°C. Trust Molex’s quality for your precise wiring needs and improve your product reliability.
Buy Molex 218323 now and experience unmatched reliability for industrial, automotive, and consumer electronics applications.
Frequently Asked Questions
Where can I buy MOLEX 2183231041?
You can click on the BUY or RFQ button to purchase 2183231041 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183231041?
You can download the 2183231041 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183231041?
MOLEX
