MOLEX 2183971052 Datasheet & Stock

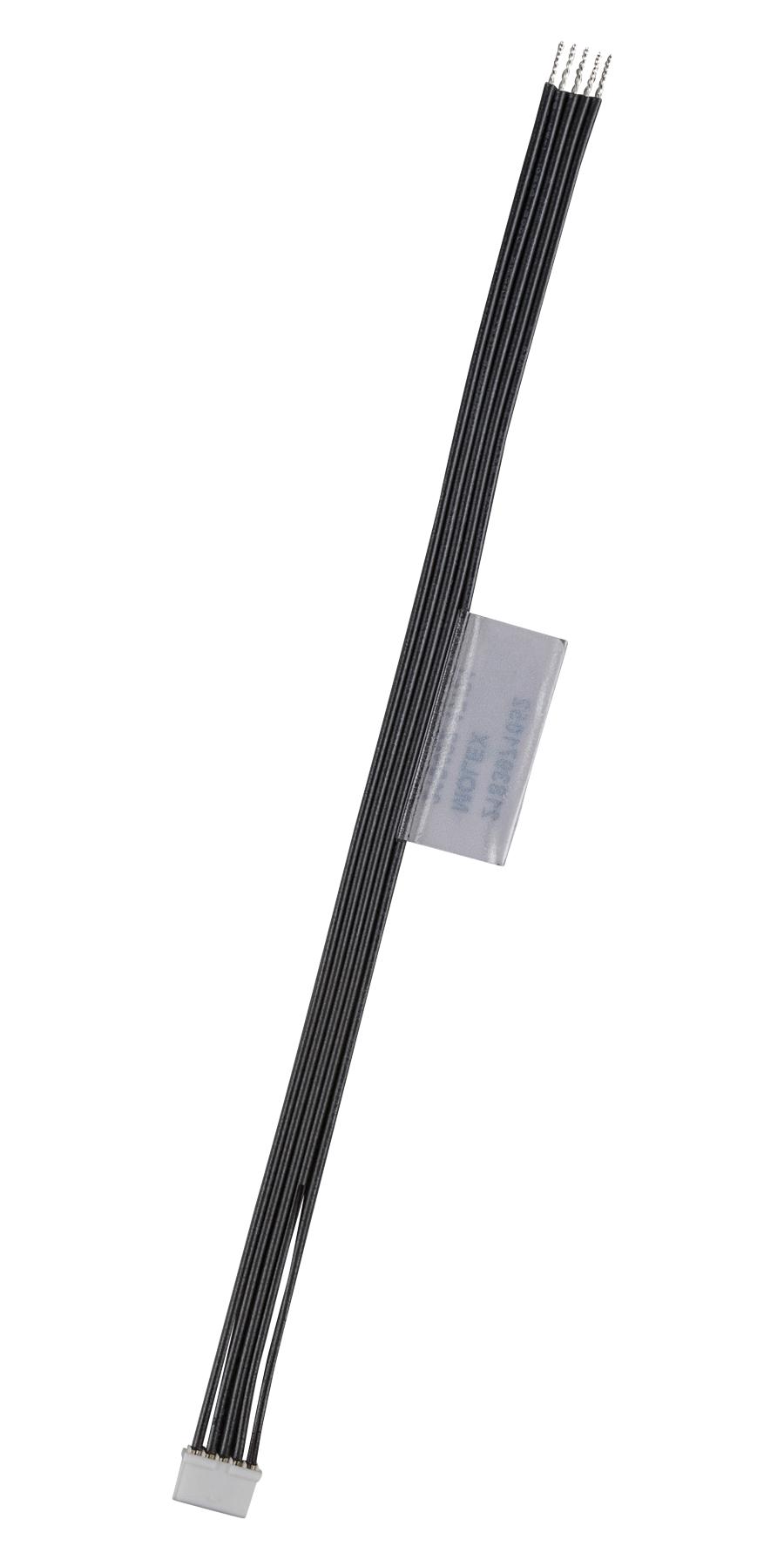

The Pico-SPOX 1.5 mm pitch off-the-shelf (OTS) cable assembly features discrete tin-plated wire conductors and is designed for both prototyping and preproduction applications. It utilizes popular terminal types compatible with readily available crimping tools, simplifying assembly. The assembly includes a vertical or right-angle single-row header with a friction lock, providing secure latch protection and reliable terminal retention. Its compact design offers a 30% size reduction compared to traditional 2 mm wire-to-board connectors, making it suitable for consumer electronics, industrial automation, and medical technology. The connector supports a maximum voltage of 250VAC, a maximum current of 2.5A per contact, and uses 24 AWG UL 10002 wire. Constructed with a nylon housing, phosphor bronze contacts with tin plating, and natural-colored resin, it is UL and CSA certified, with a rated durability of up to 10 insertion cycles and an operating temperature range from -10°C to +105°C.

View 2183971052Datasheet [pdf]
