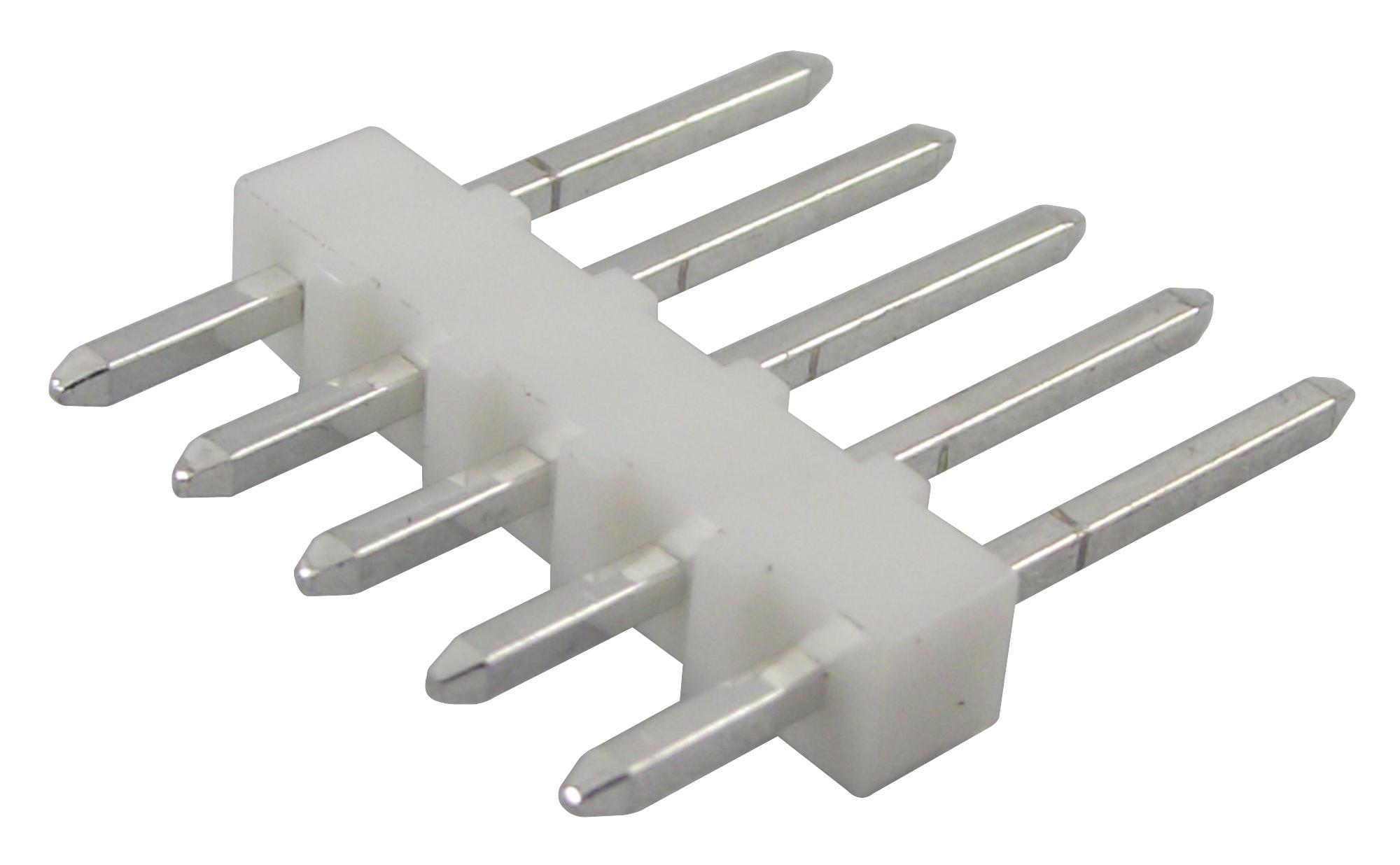

MOLEX 22032051 Wire-to-Board Header
The KK 254 wire-to-board header from the KK series is a versatile, single-row, vertical connector featuring 5 circuits made from PA polyamide nylon with tin plating. It is designed for reliable PCB connections in industrial and electronic applications. With a current capacity of up to 4.0A per contact and a maximum voltage of 500V, this header is RoHS and UL certified, durable for 25 mating cycles, and suitable for through-hole mounting. Its compact size and precise pitch of 2.54mm ensure easy integration and secure connections in signal applications.
MOLEX 22032051 Wire-to-Board Header Specifications:
- Number of Circuits: 5
- Color - Resin: Natural (White)
- Material - Resin: Nylon
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Flammability: 94V-0
- Durability (mating cycles max): 25
- Voltage - Maximum: 500V
- Current - Maximum per Contact: 4.0A
- Operating Temperature Range: Not specified
- Pitch - Mating Interface: 2.54mm
- PC Tail Length: 3.43mm
- PCB Thickness - Recommended: 1.60mm
- Orientation: Vertical
- Surface Mount Compatible: No
- Shrouded: No
- Stackable: No
- RoHS Compliance: Yes
- UL Certification: Yes
Buy the Molex Series KK: KK 254 Wire-to-Board Header 0022032051
Enhance your electronic assembly with the Molex KK 254 wire-to-board header, a robust connector suitable for PCB applications. Featuring five circuits, 2.54mm pitch, and tin plating, this header offers excellent electrical performance, durability for 25 mating cycles, and UL/RoHS certification for safety and compliance. Its vertical orientation and compact design make installation straightforward, ensuring secure and stable connections in industrial, automation, and consumer electronics. Order online now to benefit from quick delivery and expert support.
Buy Molex KK 254 wire-to-board connector now and experience reliable PCB connections with excellent durability and high current capacity.
Frequently Asked Questions
Where can I buy MOLEX 22032051?
You can click on the BUY or RFQ button to purchase 22032051 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 22032051?
You can download the 22032051 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 22032051?
MOLEX
