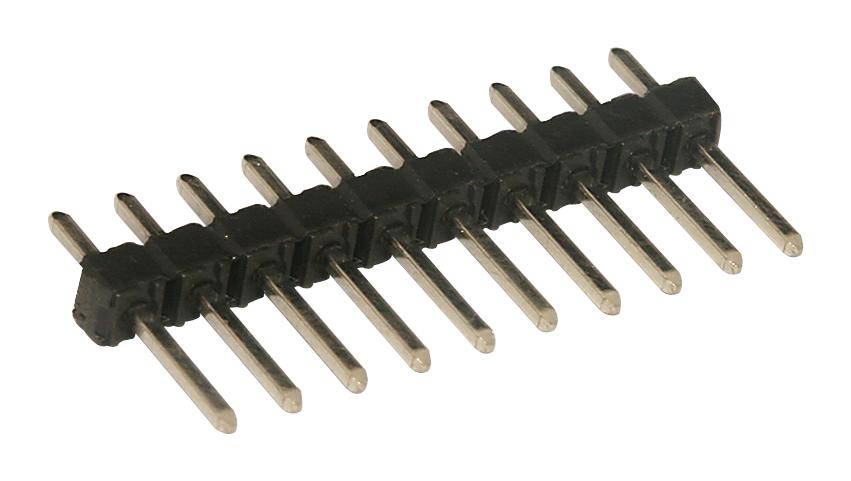

MOLEX 22284150 KK 254 Breakaway Header
The MOLEX 22-28-4150 KK 254 Breakaway Header is a versatile interconnect solution designed for a variety of applications. This header offers 15 circuits and a vertical orientation, making it suitable for dense board layouts. The tin plating ensures excellent solderability and corrosion resistance, while the breakaway design simplifies assembly and maintenance. It is commonly used in board-to-board and wire-to-board applications where a secure and reliable connection is essential.
MOLEX 22284150 KK 254 Breakaway Header Specifications:
- circuits_loaded: 15
- circuits_maximum: 15
- color_resin: Black
- durability_mating_cycles_max: 25
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- guide_to_mating_part_no: None
- lock_to_mating_part_no: None
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 0.972
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.18mm
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended: 1.60mm
- packaging_type: Bag
- pitch_mating_interface: 2.54mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- polarized_to_mating_part_no: No
- polarized_to_pcb: No
- shrouded: No
- stackable: No
- surface_mount_compatible_smc: Yes
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_maximum_per_contact: 4.0A
- voltage_maximum: 500V
- duration_at_max_process_temperature_seconds: 005
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 235
- engineering_number: 42375-0015
- packaging_specification: PK-40873-0041-001
- product_specification: PS-10-07-001
- sales_drawing: SD-42375-001
