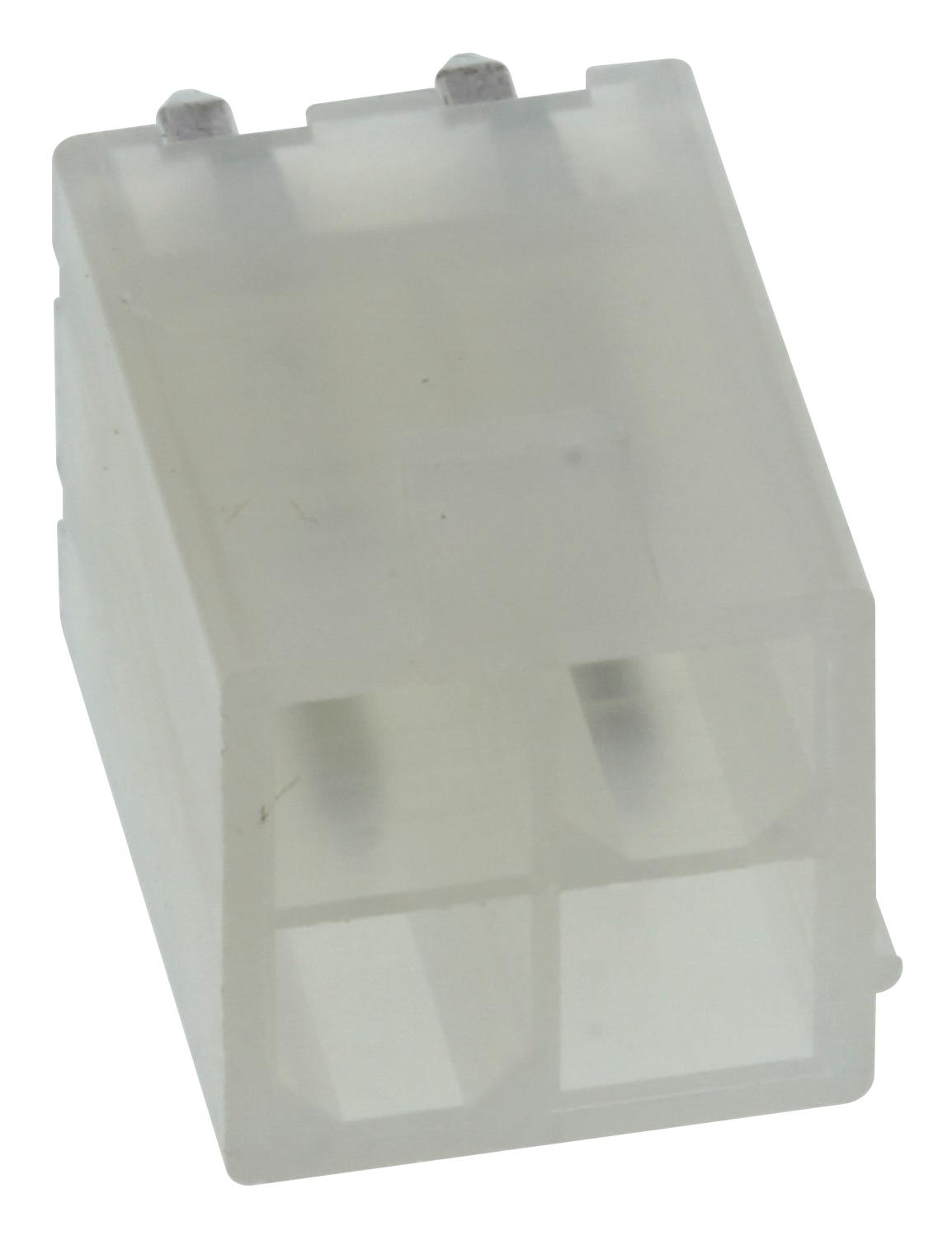

MOLEX 353170420 Power Connector
The Mini-Fit Jr. power connector features a 4.20mm pitch, dual-row, vertical orientation with four circuits. It is made from PA Polyamide (Nylon) 6/6, UL 94V-2, and is environmentally compliant with RoHS and halogen-free standards. Designed for wire-to-board applications, it supports currents up to 13A per circuit at a maximum voltage of 250V. Its operating temperature ranges from -40°C to +105°C. The connector is suitable for power distribution in various industrial and electronic applications, offering high durability with a maximum of 30 mating cycles and reliable connections.
MOLEX 353170420 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 4
- Color - Resin: Natural
- Material - Resin: Nylon
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Durability (mating cycles max): 30
- Current - Max per Circuit: 13A
- Voltage - Max: 250V
- Operating Temperature Range: -40°C to +105°C
- Termination Interface: Through Hole
- Physical Orientation: Vertical
- PCB Tail Length: 3.50mm
- Net Weight: 1.146g
- Packaging: Bag
- Flammability: UL 94V-2
- Halogen-Free Status: Low-Halogen
- RoHS Compliant, REACH SVHC Not Contained
Buy the Molex 353170420 – Reliable Power Connector for Industrial Applications
Invest in the Molex power connector designed for power distribution in industrial and electronic systems. Featuring a 4.20mm pitch, dual-row configuration with four circuits, this Nylon-bodied connector supports currents up to 13A per circuit at 250V. Its operating temperature range from -40°C to +105°C ensures durability and stability across various environments. With a maximum of 30 mating cycles, it provides reliable, secure connections for power applications, ensuring efficiency, safety, and compliance with RoHS standards. Perfect for manufacturing, automation, and various equipment integration.
Get Molex 353170420 today—built for power distribution and long-lasting durability.
