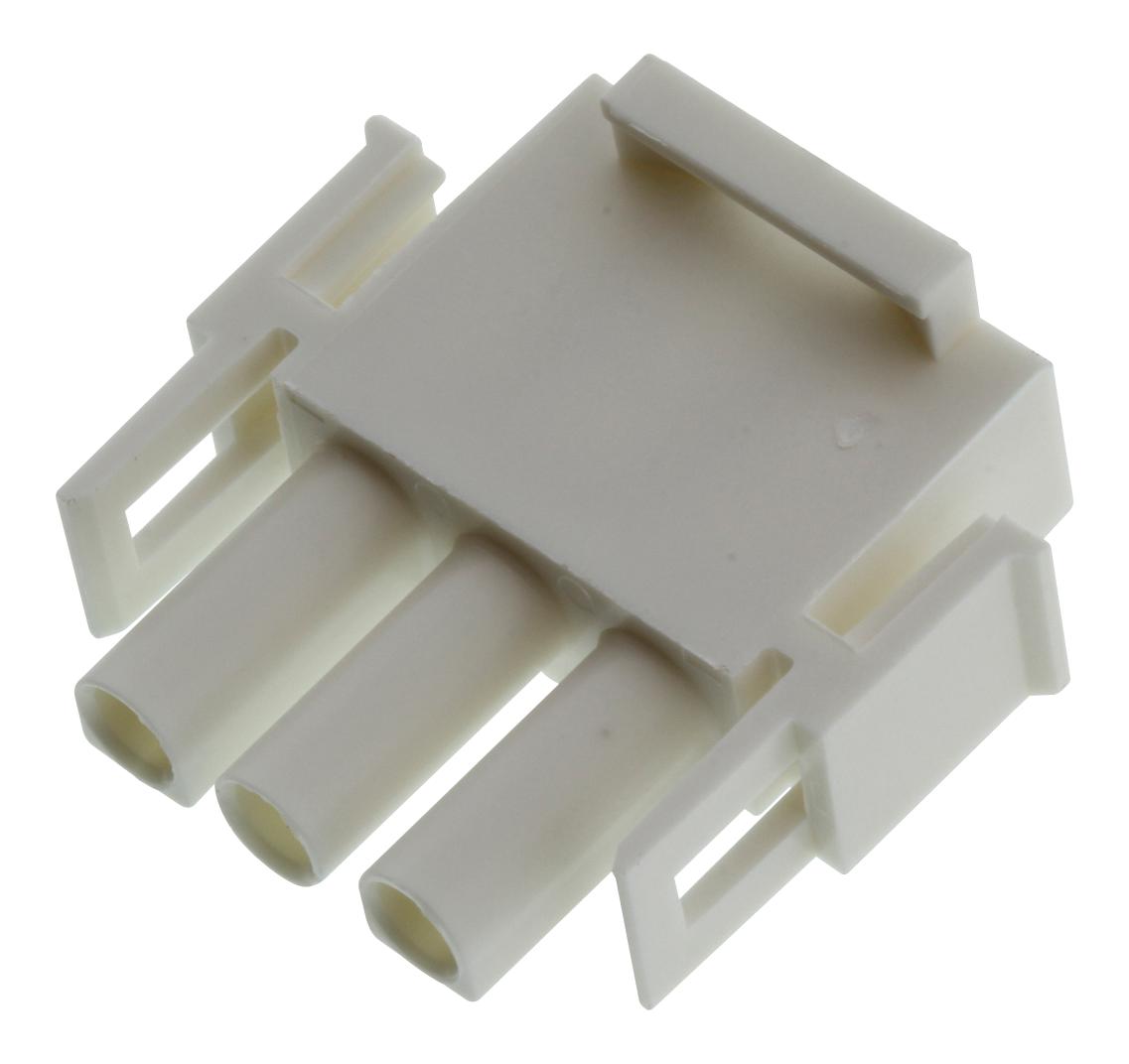

MOLEX 366430003 Power Connector
The MLX Power Connectors are 2.13mm diameter plug housings designed for power applications, featuring three circuits and made from flame-retardant PA Polyamide Nylon 6/6 with a flammability rating of 94V-2. They are glow-wire capable with an operating temperature range from -55°C to +105°C, ensuring reliable performance in demanding electrical environments. Compatible with MLX pins and sockets, these connectors are suitable for wire-to-wire connections, offering secure locking with no keying to mating parts. Ideal for power distribution requiring high current capacity up to 20A per contact and compact size.
MOLEX 366430003 Power Connector Specifications:
- Circuits: 3
- Diameter: 2.13mm
- Material: PA Polyamide Nylon 6/6
- Flammability: 94V-2
- Glow-Wire Capable: Yes
- Temperature Range: -55°C to +105°C
- Current per Contact: 20.0A
- Color: Natural
- Gender: Plug
- Lock to Mating Part: Yes
- Pitch - Mating Interface: 6.35mm
- Pitch - Termination Interface: 6.35mm
- Net Weight: 2.870 grams
- Packaging Type: Bag
- Number of Rows: 1
- Polarized to Mating Part: Yes
Buy the Molex Series MLX Power Connectors: 366430003
Enhance your power distribution with Molex's MLX Power Connector featuring three circuits, 2.13mm diameter, and a robust flame-retardant nylon housing. Designed for demanding electrical applications, it offers a maximum current of 20A per contact, secure locking without keying, and an operating temperature range from -55°C to +105°C ensuring durability and safety. Compatible with MLX pins and sockets, this compact connector ensures reliable, high-quality power connections for industrial and household electronics, making it an essential component for efficient electrical systems.
Buy Molex 366430003 now and experience unmatched reliability and performance in power connectivity solutions.
