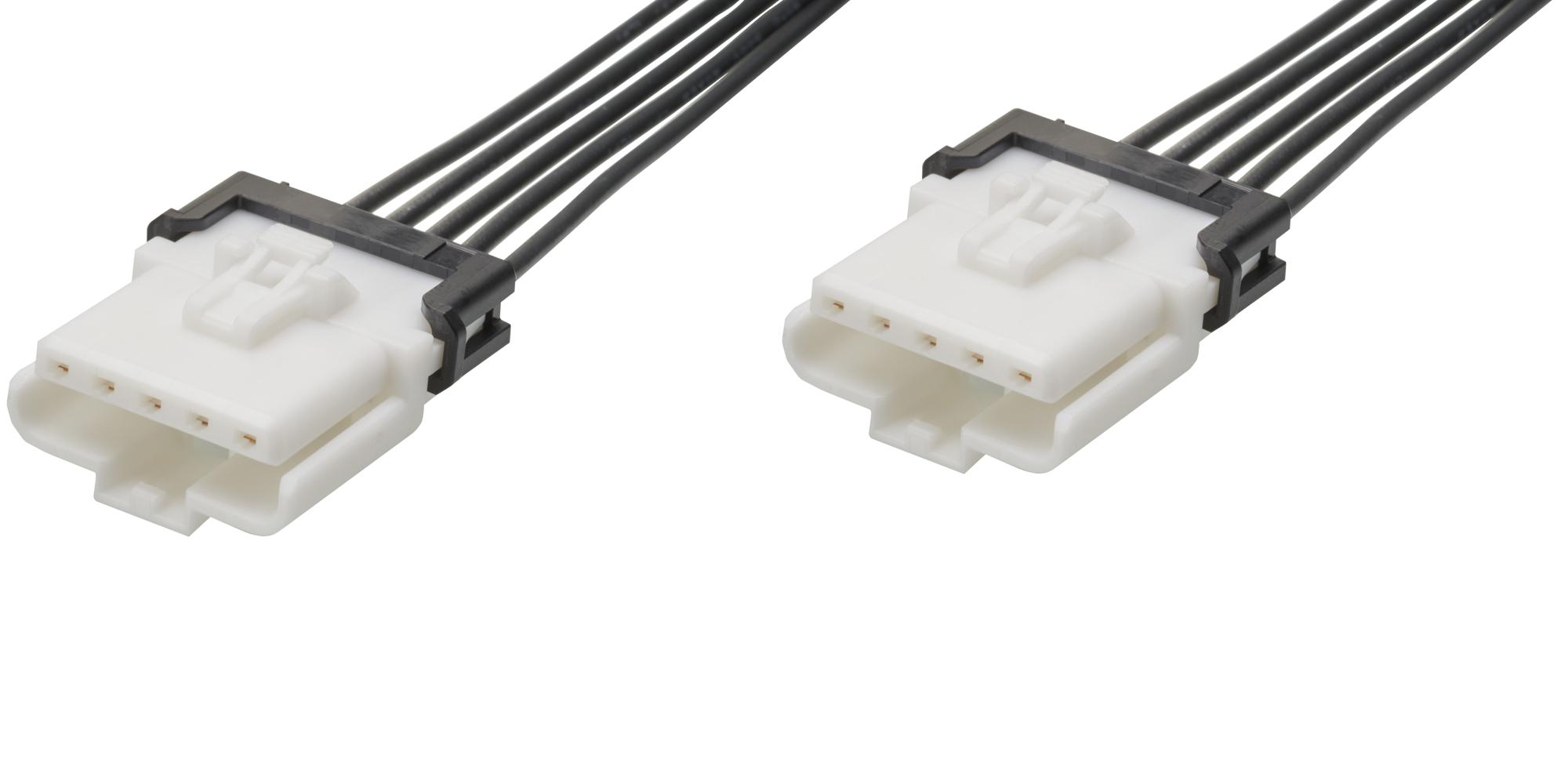

MOLEX 369220501 Wire-to-Wire Interconnect
The Ditto-to-Ditto Off-the-Shelf cable assembly features a 3.00mm pitch, single row configuration, and 100mm length with 5 circuits. Designed for wire-to-wire power and signal connections, it uses hermaphroditic connectors, making mating straightforward. Constructed with tin-plated brass conductors and nylon insulation, it supports a maximum current of 4.5A and voltage of 350V AC/DC. This flexible cable assembly is RoHS and REACH compliant, ideal for compact, reliable electronic interconnections requiring efficient installation and consistent performance.
MOLEX 369220501 Wire-to-Wire Interconnect Specifications:
- Pitch: 3.00mm
- Number of Circuits: 5
- Cable Length: 100.00mm
- Color: Black
- Connector Type: Hermaphroditic
- Material - Metal: Tin Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 1.35-1.70mm
- Wire Size AWG: 20
- Electrical Current - Maximum per Contact: 4.5A
- Voltage - Maximum: 350V AC/DC
- Packaging: Bag
- Application: Power, Wire-to-Wire
- Assembly Configuration: Connector to Connector, Dual Ended
- RoHS & REACH compliant, Halogen-Free, No EU ELV
Buy the Buy Molex Wire-to-Wire Part Number 0369220501 Online
Purchase the Molex wire-to-wire interconnect assembly now for ultimate reliability and efficient power delivery. Featuring a 3.00mm pitch, 5 circuits, and hermaphroditic connectors, this 100mm black cable is ideal for compact electronic projects. Made with durable tin-plated brass and nylon insulation, it supports up to 4.5A and 350V, ensuring safe and stable connections. Perfect for automation, industrial equipment, and electronic assemblies, this RoHS-compliant cable provides easy installation and long-lasting performance, making it a valuable component for your application needs.
Get Molex 0369220501 today—built for reliable power and signal transfer in electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 369220501?
You can click on the BUY or RFQ button to purchase 369220501 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369220501?
You can download the 369220501 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369220501?
MOLEX
