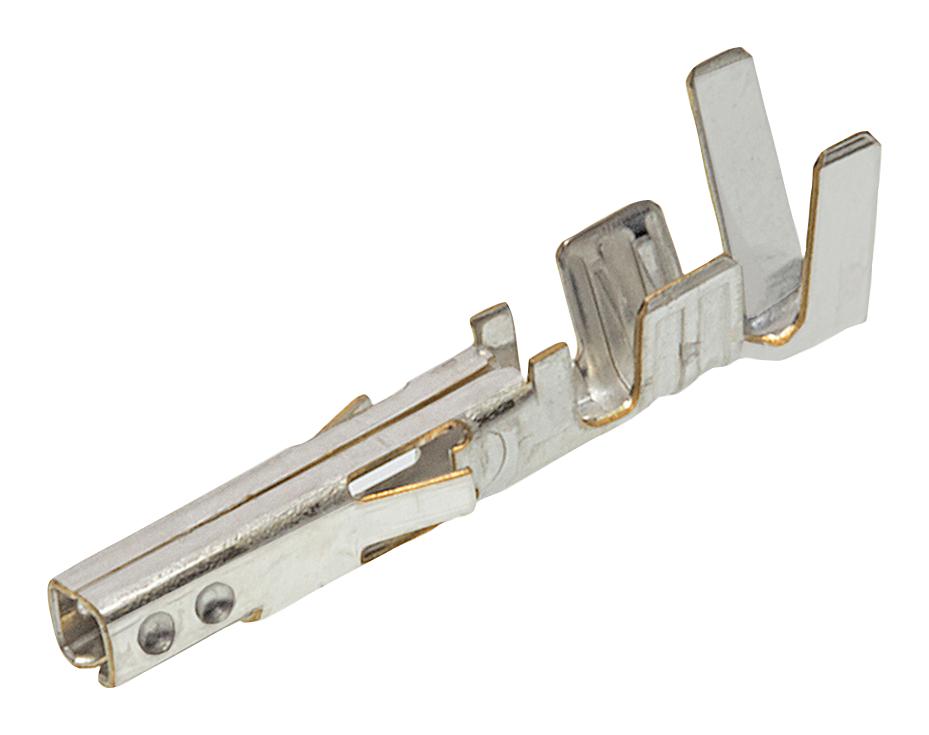

MOLEX 39000218 Mini-Fit Female Crimp Terminal
The Mini-Fit Female Crimp Terminal is designed for reliable wire-to-board and wire-to-wire power connections using 16 AWG wire. Made from phosphor bronze with a tin coating, it offers durability, corrosion resistance, and excellent electrical conductivity. Suitable for applications requiring secure crimping and multiple mating cycles, it supports a maximum current of 9.0A at 600V. It is compatible with Mini-Fit Jr. series connectors, including mating with male crimps and receptacle housing. Ideal for power distribution in industrial and electronic systems, ensuring robust and dependable connections.
MOLEX 39000218 Mini-Fit Female Crimp Terminal Specifications:
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 16
- Wire Size mm: 1.270mm
- Wire Insulation Diameter: 2.540mm
- Maximum Current: 9.0A
- Maximum Voltage: 600V
- Durability (mating cycles): 30
- Termination Interface Style: Crimp or Compression
- Net Weight: 0.133 grams
- Packaging: Bag
- Gender: Female
- Application: Power, Wire-to-Board, Wire-to-Wire
- Operating Temperature: Not specified
- Certification: RoHS Compliant, Low-Halogen
- Crimping Tool: Extraction Tool 11030044, Hand Crimp Tool 2002182200
Buy the Buy Molex Mini-Fit Female Crimp Terminal Part Number 39000218 Online
Purchase the Molex Mini-Fit Female Crimp Terminal online for secure, efficient power connections in electronics and industrial equipment. Made from durable phosphor bronze with a tin-plated finish, it supports 16 AWG wire, a maximum current of 9A, and voltage of 600V. Designed for multiple mating cycles, it ensures reliable performance in power distribution systems. Compatible with Mini-Fit Jr. series connectors and tested for RoHS compliance, this terminal provides robust and corrosion-resistant electrical connections for demanding applications.
Buy Molex 39000218 now and experience unmatched reliability and high-performance power connections for industrial and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 39000218?
You can click on the BUY or RFQ button to purchase 39000218 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39000218?
You can download the 39000218 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39000218?
MOLEX
