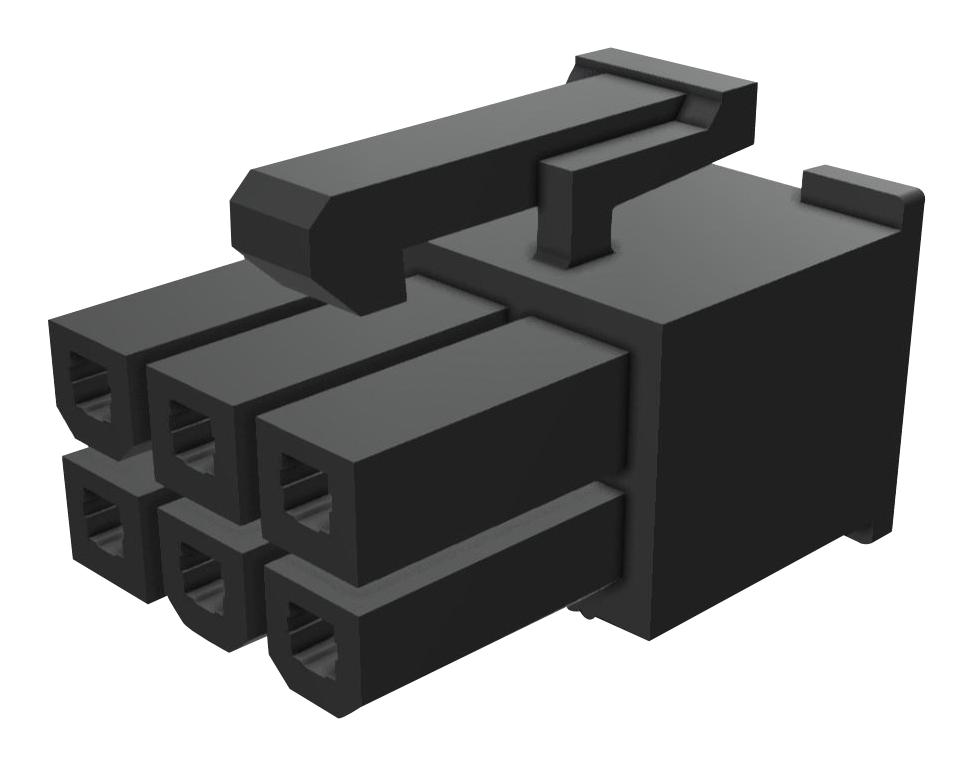

MOLEX 39013065 Receptacle Housing
The MOLEX 39-01-3065 is a Mini-Fit Jr. receptacle housing, a crucial component in wire-to-board and wire-to-wire connection systems. Designed for robust performance, this housing accommodates 6 circuits in a dual-row configuration. Manufactured from nylon and rated UL 94V-2, it offers excellent flame retardancy and durability. The housing is RoHS compliant, meeting environmental standards. It is compatible with Mini-Fit Female Crimp Terminals and various PCB Headers, making it a versatile solution for a wide range of industrial and commercial applications. Its secure locking mechanism ensures a reliable connection, while its polarized design simplifies assembly and prevents mismating.
MOLEX 39013065 Receptacle Housing Specifications:
- Breakaway Circuits (maximum): No
- Color - Resin: Black
- Flammability: 94V-2
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 2.042/g
- Number of Rows: 2
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 13.0A
- Lead-freeProcess Capability: N/A
- Series: 5557
- Application: Power, Wire-to-Board, Wire-to-Wire
- Product Family: Crimp Housings
- UPC: 800754203821
- Mates With: 5559, 5566, 5569, 43810, 44068, 44281, 87427, 42404, 42440
- Use With: 5556, 45750
