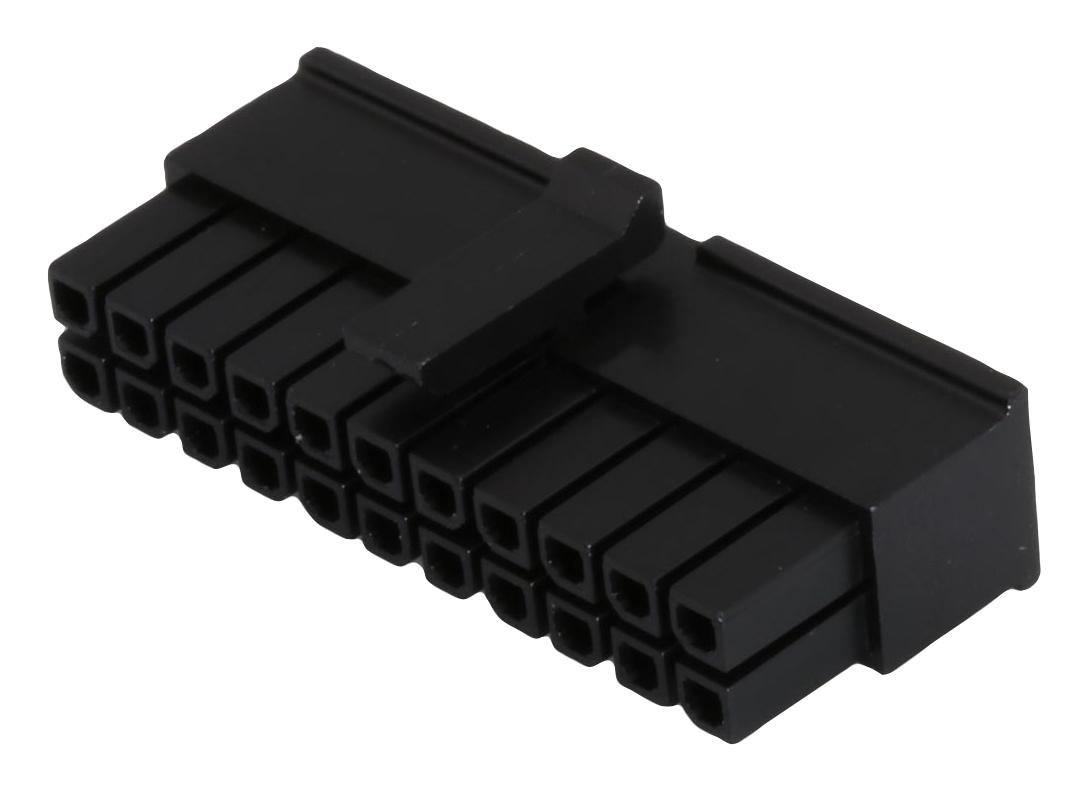

MOLEX 430252208 Micro-Fit 3.0 Receptacle Housing
The MOLEX 43025-2208 Micro-Fit 3.0 Receptacle Housing is a critical component in wire-to-board and wire-to-wire connection systems. Designed as part of the Micro-Fit 3.0 connector family, this housing provides a secure and reliable connection for 22 circuits. Constructed from black nylon resin, it offers durability and insulation. The housing is UL 94V-0 rated, indicating excellent flame retardancy, and is halogen-free since inception, contributing to environmentally conscious designs. It is compatible with Micro-Fit 3.0 plug housings and utilizes Micro-Fit 3.0 female crimp terminals for a complete connection solution. This receptacle housing is ideal for applications requiring robust and space-efficient power distribution.
MOLEX 430252208 Micro-Fit 3.0 Receptacle Housing Specifications:
- circuits_maximum: 22
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 1.759
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 3.00mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- phthalates: Not Contained
- product_family: Micro-Fit 3.0 Connector System
- application: Power, Wire-to-Board, Wire-to-Wire
- order_no: 987650-5984
- upc: 883906114572
