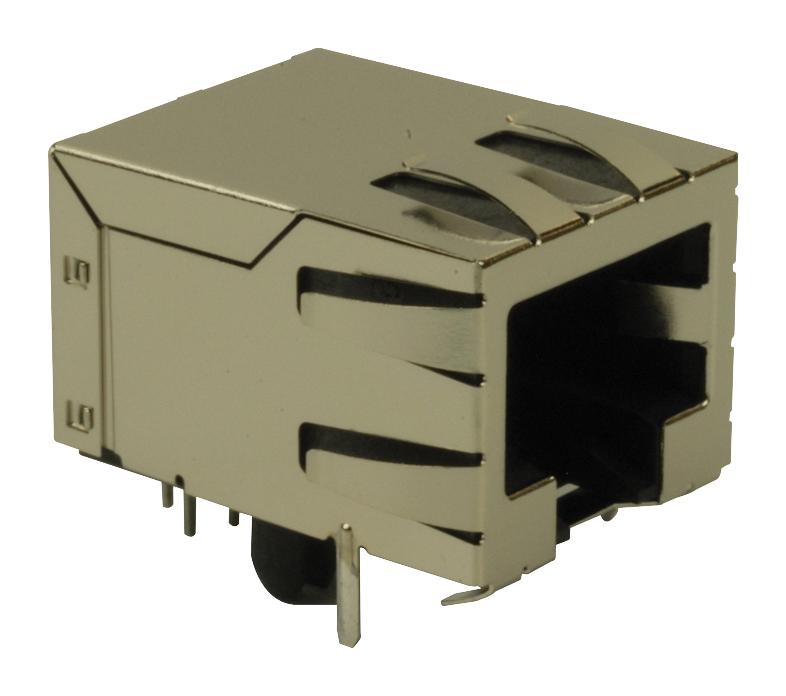

MOLEX 440500007 Ethernet Modular Jack
This is a modular RJ45 jack suitable for Power over Ethernet (PoE) applications, featuring a right-angle, low-profile design with 8/8 port configuration. Constructed from high-temperature thermoplastic with brass and phosphor bronze components, it offers durability up to 500 mating cycles. RoHS and REACH compliant, the jack supports operating temperatures from -40°C to +85°C, with a maximum current capacity of 1.5A. It includes gold-plated contacts for optimal connectivity, a black resin color, and is designed for through-hole mounting with a 1.57mm pitch in shielded panel mounting systems.
MOLEX 440500007 Ethernet Modular Jack Specifications:
- Series: 44050
- Component Type: Magnetic
- Product Family: Modular Jacks/Plugs
- Port Configuration: 8/8
- Color - Resin: Black
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Durability (mating cycles max): 500
- Flammability: UL 94V-0
- Temperature Range - Operating: -40°C to +85°C
- Voltage - Maximum: 150V AC (RMS)
- Current - Maximum per Contact: 1.5A
- Dimensions: Jack height approximately 13.06mm, pitch - 1.57mm
- Mounting: Through Hole, Shielded Panel Mounting
- Waterproof / Dustproof: No
- Wire / Cable Type: N/A
- RoHS, REACH, European and China RoHS Compliant
- UL, CSA Certified
Buy the Buy Molex Modular Jack Part Number 440500007 Online
Purchase the Molex Ethernet Modular Jack, part number 440500007, online today to ensure reliable Power over Ethernet connections. Designed for durability, it features a low-profile right-angle design suitable for PCB mounting in network equipment. Constructed from high-temperature thermoplastic with gold-plated contacts for optimal connectivity, this jack supports 8/8 port configurations, operating temperatures from -40°C to +85°C, and a maximum current capacity of 1.5A. RoHS and REACH compliant, it guarantees safety and environmental standards adherence, ideal for robust networking solutions.
Buy Molex 440500007 now and experience unmatched reliability and performance in Ethernet connectivity with durable, RoHS-compliant modular jacks.
Frequently Asked Questions
Where can I buy MOLEX 440500007?
You can click on the BUY or RFQ button to purchase 440500007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 440500007?
You can download the 440500007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 440500007?
MOLEX
