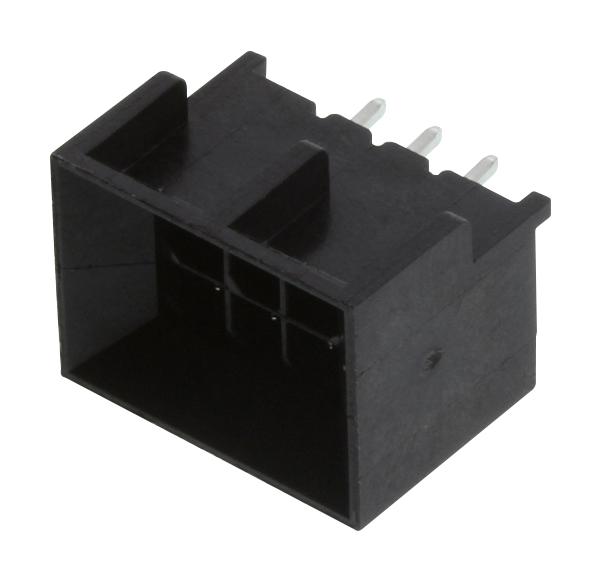

MOLEX 444320601 Micro-Fit Connector
The Micro-Fit BMI Header is a surface-mount compatible, dual-row, vertical connector with a PCB polarizing peg and 6 circuits. It features tin plating, kinked tails, and is designed for reliable board-to-board and wire-to-board applications. Made from high-temperature thermoplastic with brass contact material, it supports up to 8.5A current per contact and 250V AC/DC maximum voltage. The connector is RoHS compliant, UL and CSA certified, and designed to withstand temperature ranges from -40°C to +105°C, ensuring durability in demanding environments.
MOLEX 444320601 Micro-Fit Connector Specifications:
- Number of Circuits: 6
- Contact Material: Brass
- Plating: Tin
- Color - Resin: Black
- Flammability: 94V-0
- Durability (mating cycles max): Not specified
- Operating Temperature Range: -40°C to +105°C
- Voltage Rating: 250V AC/DC
- Current per Contact: 8.5A
- Pitch - Mating Interface: 3.00mm
- PC Tail Length: 3.30mm
- Material - Resin: High Temperature Thermoplastic
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Surface Mount Compatible: Yes
- Shrouded: No
- Stackable: No
- PCB Thickness - Recommended: 1.60mm
- Packaging: Tray
- Temperature Range - Operating: -40°C to +105°C
- Meets RoHS, UL, CSA standards
- Maximum Voltage: 250V AC/DC
- Maximum Current per Contact: 8.5A
Buy the Molex Series Micro-Fit 3.0 Connector: 0444320601
Purchase the Molex Micro-Fit Connector today for reliable, high-quality PCB and wire-to-board connections. Designed with durable tin plating and high-temperature thermoplastic, it ensures longevity and performance in various electronic applications. With a compact 3.00mm pitch and 6 circuits, it supports up to 8.5A per contact and operates within a -40°C to +105°C temperature range. Easy to mount and compatible with surface-mount technology, it is suitable for demanding industrial and consumer electronics environments.
Get Molex 0444320601 today—built for precision and long-lasting durability in demanding electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 444320601?
You can click on the BUY or RFQ button to purchase 444320601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 444320601?
You can download the 444320601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 444320601?
MOLEX
