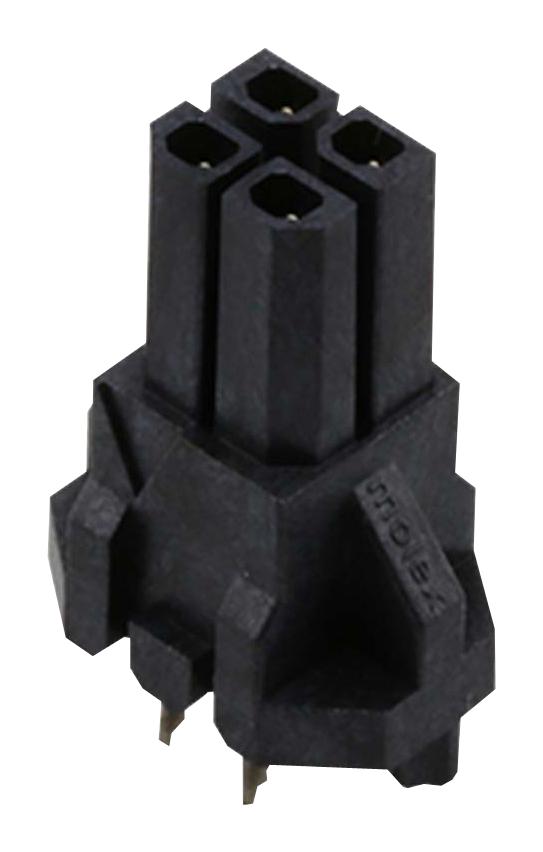

MOLEX 447690402 Micro-Fit Receptacle Header
The MOLEX 44769-0402 Micro-Fit BMI receptacle header is a versatile component within the Micro-Fit 3.0 Connector System. Designed for robust connections in various applications including board-to-board, power distribution, and wire-to-board interfaces, this header offers a dual-row, vertical configuration. It incorporates press-fit plastic pegs for secure mounting and utilizes gold selective plating on the mating interface and tin plating on the termination interface to ensure optimal electrical performance and durability. The header is compatible with a range of Micro-Fit BMI headers and housings, making it a flexible solution for diverse electronic designs. Its robust construction and reliable performance make it suitable for industrial and commercial applications.
MOLEX 447690402 Micro-Fit Receptacle Header Specifications:
- circuits_loaded: 4 Circuits (maximum)
- color_resin: Black
- durability_mating_cycles: 30
- flammability: 94V-0
- glow_wire_capable: No
- material_metal: Phosphor Bronze
- plating_mating: Gold (0.381µm min)
- plating_termination: Tin (2.540µm min)
- material_resin: Liquid Crystal Polymer
- net_weight_g: 0.933
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length_mm: 3.40
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.57
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- surface_mount_compatible: No
- temperature_range_operating_c: -40° to +105°
- termination_interface_style: Through Hole
- current_max_per_contact_a: 8.5
- voltage_max_v: 250
- duration_at_max_process_temp_seconds: 005
- lead_free_process_capability_wave_cycles: 001
- process_temperature_max_c: 260
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
