MOLEX 461144120 Power Connector
The EXTreme LPHPower Receptacle Header features a 1.27mm pitch with 12 power and 12 signal contacts, utilizing high-performance alloy and gold plating for reliable connections. Designed for board-to-board power applications, it supports up to 250V AC/DC and 30A per contact, with a durability of 250 mating cycles. The vertical orientation and high-temperature thermoplastic housing ensure secure mounting, while press-fit pins facilitate quick assembly. Suitable for various power and signal routing in industrial and electronic systems, it complies with RoHS and UL standards for safety and environmental compliance.
MOLEX 461144120 Power Connector Specifications:
- Pitch: 1.27mm
- Number of Power Contacts: 4
- Number of Signal Contacts: 12
- Total Circuits: 16
- Current per Contact: 30A
- Voltage Rating: 250V AC/DC
- Material - Metal: High Performance Alloy
- Plating - Mating: Gold, 0.762um min
- Plating - Termination: Tin, 2.540um min
- Housing Material: High Temperature Thermoplastic
- Color: Black
- Mating Cycles: 250
- Operating Temperature: -40°C to +105°C
- Orientation: Vertical
- Compliance: RoHS, UL, CSA
- Packaging: Tube
- Flammability: 94V-0

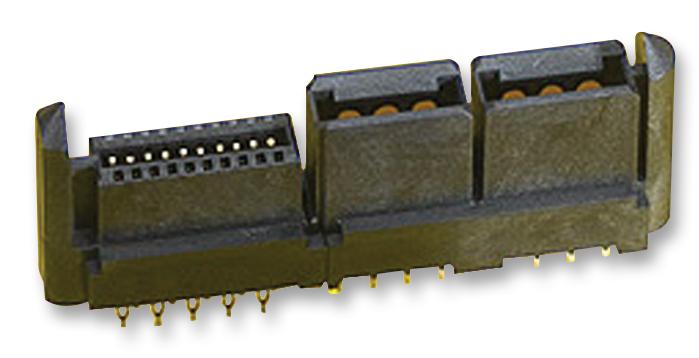

Buy the Buy Molex EXTreme LPHPower Part Number 461144120 Online
Secure your electronic assemblies with the high-quality Molex power connector designed for power and signal transfer. Featuring gold-plated contacts, a durable high-temperature thermoplastic housing, and support for up to 250V and 30A per contact, this connector ensures reliable performance in demanding environments. Its vertical orientation, easy press-fit mounting, and RoHS compliance make it suitable for various industrial applications. Order online today to streamline your assembly process and enhance system reliability with Molex’s trusted power connection solutions.
Buy Molex 461144120 now and experience unmatched reliability and high current power connections for your electronic and industrial systems.
Frequently Asked Questions
Where can I buy MOLEX 461144120?
You can click on the BUY or RFQ button to purchase 461144120 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 461144120?
You can download the 461144120 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 461144120?
MOLEX
