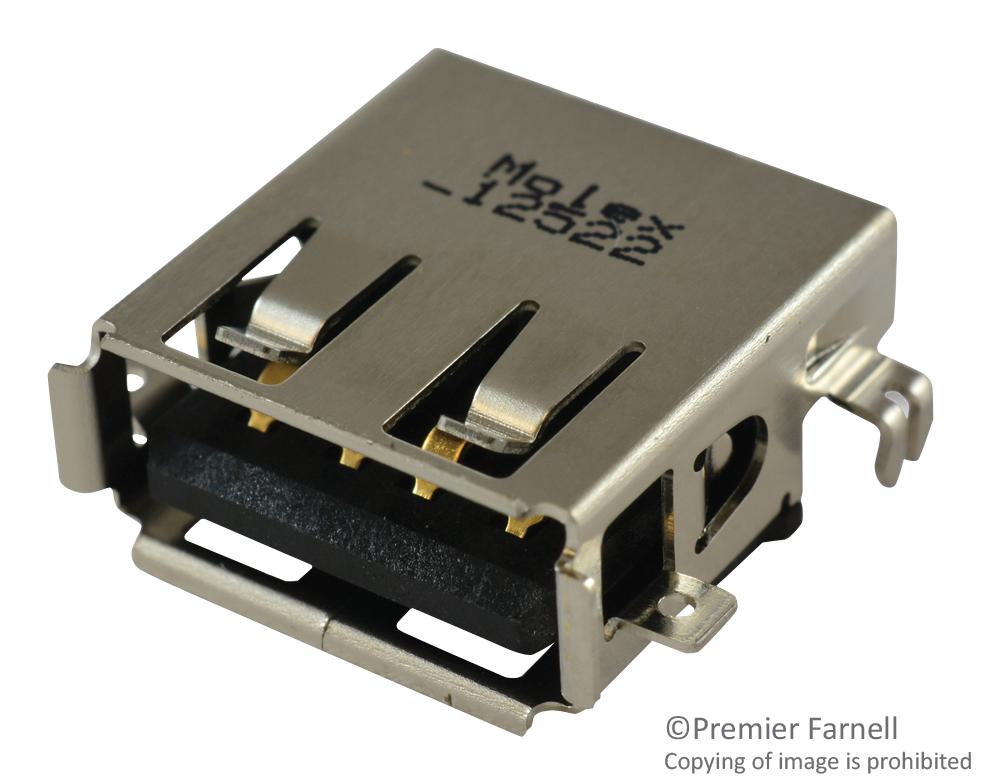

MOLEX 482580001 USB Shielded Receptacle
This USB A Right-Angle Shielded I/O Receptacle is designed for reliable high-speed data transfer, featuring gold plating and lead-free construction for durability and compliance. It operates within a temperature range of -25°C to +85°C, supporting up to 1.5A current. The right-angle orientation, 1.50mm pitch, and through-hole mounting ensure secure PCB connections. Fully shielded and RoHS compliant, this receptacle is ideal for USB 2.0 applications, offering robust protection against electromagnetic interference in industrial and consumer electronics.
MOLEX 482580001 USB Shielded Receptacle Specifications:
- Component Type: USB A Sink Receptacle
- Application: USB 2.0 high-speed data transfer
- Gender: Receptacle
- Number of Circuits: 4
- Maximum Circuits: 4
- Plating Mating: Gold
- Plating Termination: Tin
- Material: Copper alloy
- Net Weight: 1.640 grams
- Orientation: Right Angle
- Pitch - Mating Interface: 1.50mm
- PCB Tail Length: 1.50mm
- PCB Thickness - Recommended: 1.00mm
- Temperature Range - Operating: -25°C to +85°C
- Waterproof / Dustproof: No
- Current - Maximum per Contact: 1.5A
- Shield Type: Full Shield
- Voltage - Maximum: 250V AC
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Low-Halogen: Yes
Buy the Buy Molex USB A Shielded Receptacle Part Number 482580001 Online
Experience reliable connections with the Molex USB Shielded Receptacle, designed for high-speed data transfer and durability. Featuring gold-plated contacts, a robust shield, and RoHS compliance, it is suitable for industrial and consumer applications. The right-angle design with a 1.50mm pitch ensures secure PCB integration, operating efficiently within -25°C to +85°C and supporting up to 1.5A current. Easy to install, this USB 2.0 receptacle offers excellent electromagnetic interference protection and long-term performance for your electronic projects.
Order your Molex Series48258 USB A Shielded Receptacle 482580001 today and ensure reliable high-speed data transfer with secure PCB mounting.
Frequently Asked Questions
Where can I buy MOLEX 482580001?
You can click on the BUY or RFQ button to purchase 482580001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 482580001?
You can download the 482580001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 482580001?
MOLEX
