MOLEX 500798025 PicoBlade Connector
The PicoBlade Connector System offers 1.25mm pitch crimp terminals designed for reliable wire-to-board and wire-to-wire connections. These terminals accommodate 26-28 AWG wires and feature gold (Au) plating for excellent conductivity and corrosion resistance. Packaged in reels, they are ideal for automation and electronic assembly. The terminals support a maximum of 1.0A current and a maximum voltage of 125V AC/DC. Made from phosphorus bronze, they ensure durability for up to 30 mating cycles and are compliant with RoHS standards, making them suitable for a broad range of electronic applications.
MOLEX 500798025 PicoBlade Connector Specifications:
- Pitch: 1.25mm
- Wire Range: 26-28 AWG
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V AC/DC
- Durability (mating cycles max): 30
- Net Weight: 9.800/mg
- Packaging Type: Reel
- Plating min - Mating: 0.380um
- Plating min - Termination: 1.000um
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.04mm max.
- Gender: Female

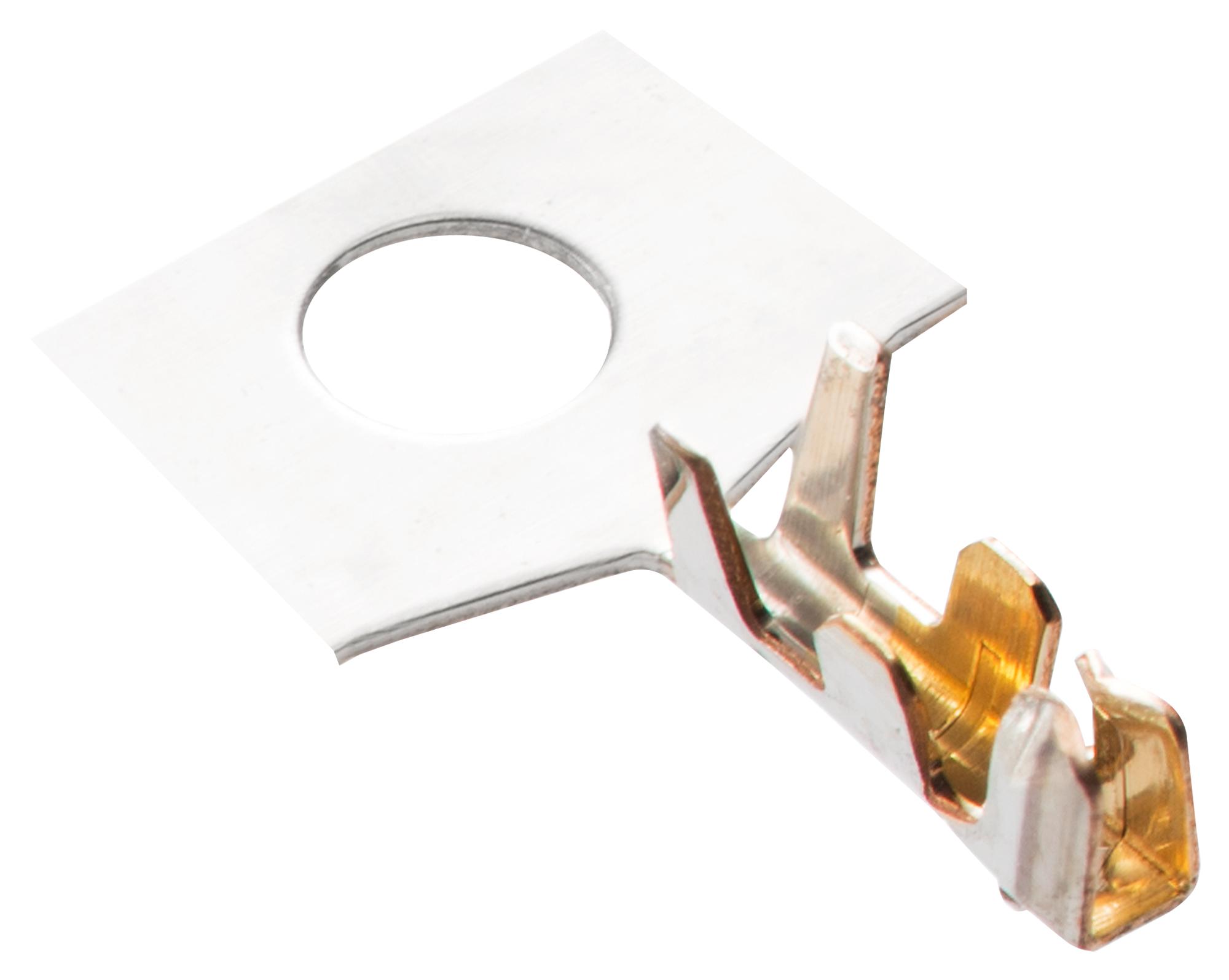

Buy the Buy Molex PicoBlade Connector System Part Number 0500798025 Online
Discover the dependable performance of the Molex PicoBlade Connector system, featuring 1.25mm pitch crimp terminals for electrical reliability. Designed for wires from 26 to 28 AWG, these gold-plated terminals offer excellent conductivity and corrosion resistance. Packaged on reels, they support up to 30 mating cycles and carry a maximum current of 1.0A at 125V. Ideal for wire-to-board and wire-to-wire applications, they meet RoHS standards, making them suitable for a variety of compact electronic and automation projects.
Order your Molex Series50079 PicoBlade connector with 1.25mm pitch and 26-28 AWG wire capacity today and ensure reliable, corrosion-resistant connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 500798025?
You can click on the BUY or RFQ button to purchase 500798025 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 500798025?
You can download the 500798025 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 500798025?
MOLEX
