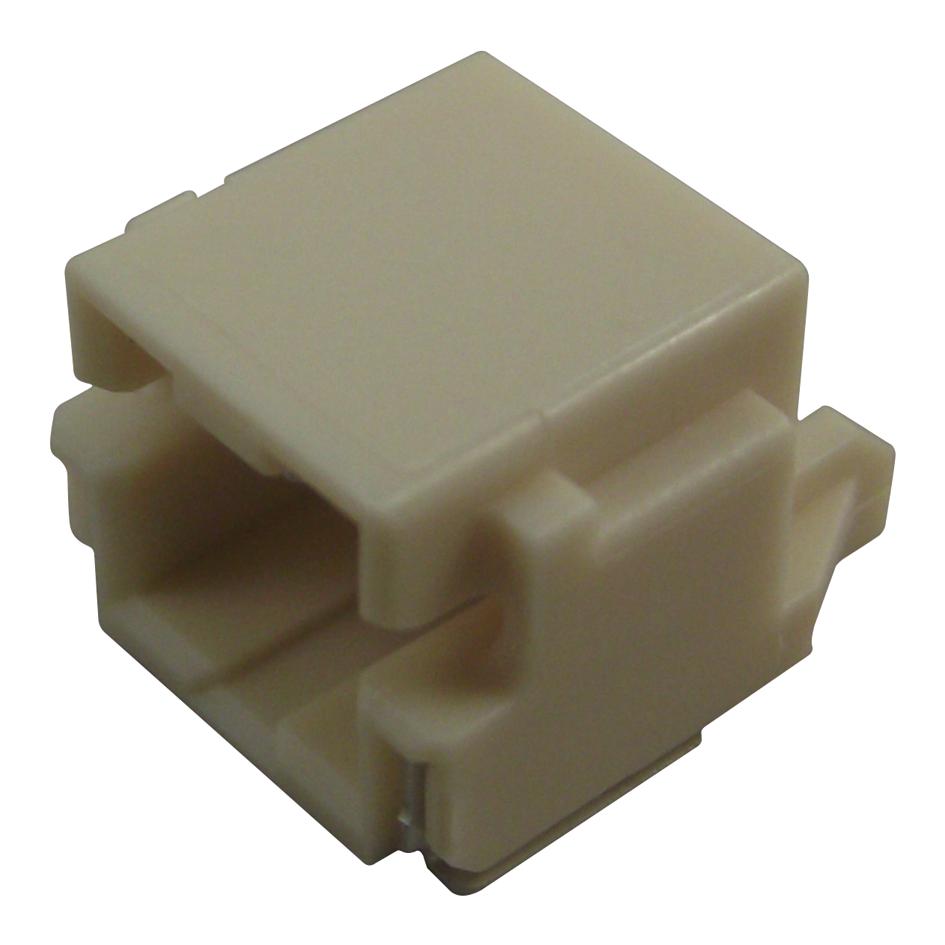

MOLEX 5023521500 Wire-to-Board Connector
The DuraClik wire-to-board header is a durable, reliable connector system designed for applications requiring secure, high-quality connections. With a single-row, right-angle design and 15 circuits, it features tin plating for excellent corrosion resistance and compatibility with various mating components. Operating within a temperature range of -40°C to +105°C, this connector supports up to 3A and 125V, making it ideal for industrial and electronic applications. Constructed from polyamide with copper alloy contacts, it offers robust performance and ease of installation, ensuring long-lasting electrical connections in demanding environments.
MOLEX 5023521500 Wire-to-Board Connector Specifications:
- Number of Circuits: 15
- Configuration: Single Row, Right Angle
- Material - Contact: Copper Alloy
- Plating - Contact: Tin
- Material - Housing: Polyamide
- Operating Temperature Range: -40°C to +105°C, extended to +125°C with specific series
- Voltage Rating: 125V
- Current Rating: 3A
- Color - Resin: Natural
- Mating Cycles Max: Not specified
- Locking Mechanism: Yes
- PCB Pitch: 2.00mm
- Orientation: Right Angle
- Compliance: EU RoHS, China RoHS, ELV Compliant, Halogen-Free
- Net Weight: 1.533g
- Packaging: Embossed Tape on Reel
Buy the Buy Molex DuraClik Connector Part Number 5023521500 Online
Secure your electronic projects with the Molex DuraClik connector, a high-quality, 15-circuit wire-to-board system designed for durability and reliable connections. The right-angle design, tin-plated contacts, and polyamide housing ensure lasting performance and easy installation in industrial and electronic applications. Operating efficiently within -40°C to +105°C, it supports 3A current and 125V voltage capacity. Ideal for demanding environments, this connector assures long-term stability, corrosion resistance, and consistent electrical contact in a compact, reliable package.
Buy Molex 5023521500 now and experience unmatched reliability and performance with a robust wire-to-board connection system built for demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 5023521500?
You can click on the BUY or RFQ button to purchase 5023521500 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023521500?
You can download the 5023521500 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023521500?
MOLEX
